Mechanical splicing of reinforcement bars (rebar) offers an efficient alternative to traditional lap splicing. By directly connecting rebar ends, mechanical couplers provide structural continuity, reduce material usage, and facilitate construction in complex scenarios. This article delves into the various types of mechanical couplers, their advantages and disadvantages, and guidance on selecting the appropriate coupler for your project.

What Is Mechanical Splicing?

Mechanical splicing involves the use of engineered devices such as sleeves, fittings, or couplers to join two reinforcement bars end-to-end, creating a continuous load path. This method eliminates the need for lap lengths, thereby reducing reinforcement congestion and material usage. Mechanical splices are designed to meet specific performance criteria, including strength and ductility, as outlined in standards like AS 3600.

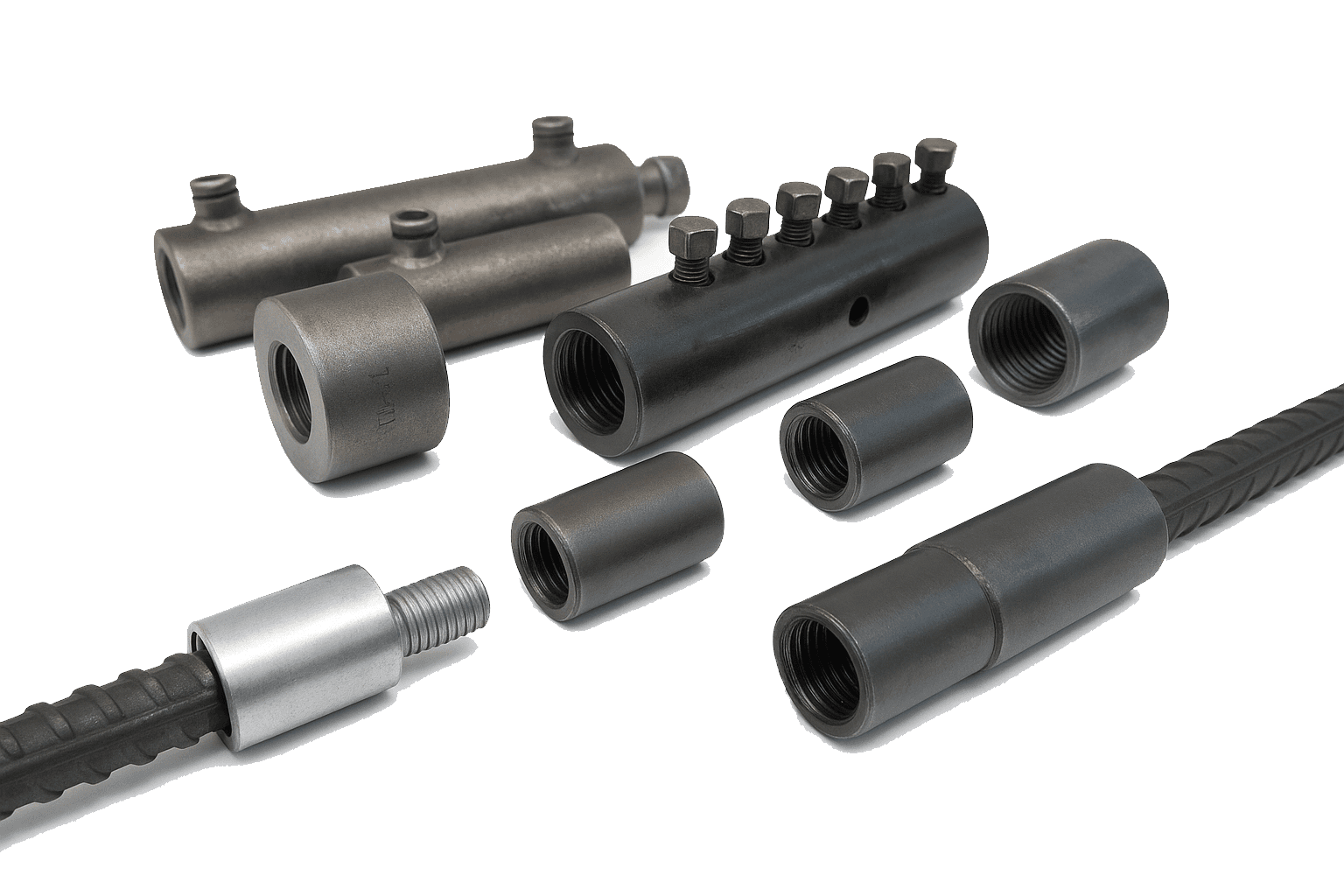

Types of Reinforcement Couplers

1. Swaged Couplers

Description: Swaged couplers use hydraulic pressure to deform a metal sleeve onto the bar ends, providing a mechanical interlock without threading or welding.

Subcategories:

  • Standard Coupler: Connects bars of equal diameter with threaded ends.
  • Transition Coupler: Joins rebars of different diameters.
  • Positional Coupler: Used when bars cannot be rotated; features left-hand and right-hand threads.
  • Weldable Coupler: One end can be welded to structural steel elements.

Advantages:

  • High tensile performance, suitable for Type 2 splices.
  • Reusable in prefabricated cages and precast elements.
  • Compact design reduces congestion in heavily reinforced zones.
  • Fast, consistent installation using hydraulic tools.
  • No threading or welding required.

Disadvantages:

  • Requires specialized hydraulic equipment.
  • Must ensure proper calibration of swaging force.

2. Threaded Couplers

Description: Threaded couplers connect reinforcement bars through machined threads on the bar ends, which are screwed into a coupler sleeve.

Subcategories:

  • Standard Coupler: Connects bars of equal diameter with threaded ends.
  • Transition Coupler: Joins rebars of different diameters.
  • Positional Coupler: Used when bars cannot be rotated; features left-hand and right-hand threads.
  • Weldable Coupler: One end can be welded to structural steel elements.

Advantages:

  • High tensile performance, suitable for Type 2 splices.
  • Reusable in prefabricated cages and precast elements.
  • Compact design reduces congestion in heavily reinforced zones.

Disadvantages:

  • Requires bar-end upsetting and threading in a factory.
  • Requires double handling, as bars must be threaded before bending, necessitating careful sequencing and increased fabrication effort when compared to swaged couplers.
  • Thread quality and cleanliness are critical for performance.

3. Grouted Couplers

Description: These systems use a steel sleeve into which rebars are inserted and then grouted to bond the bar ends mechanically and chemically. Often used in precast segmental construction.

Subcategories:

  • Standard Grout Sleeve: Designed for straight bar extensions.
  • Headed Grout Sleeve: Features end anchors to improve load transfer.

Advantages:

  • No need for threading or bar rotation.
  • Ideal for precast construction and staged builds.
  • Can accommodate some bar misalignment.

Disadvantages:

  • Requires controlled grouting operations.
  • Dependent on field installation quality control and curing.
  • Grout performance must meet minimum bond and strength requirements.

4. Bolted and Shear-Pin Couplers

Description: These couplers secure rebar ends using preloaded bolts or shear pins that grip or penetrate the bar mechanically. No bar-end preparation is needed.

Subcategories:

  • Standard Bolted: Clamp down on plain or ribbed bar using high-strength bolts.
  • Shear-Pin: Internal pin shears and locks into bar.

Advantages:

  • No threading, welding, or special bar-end preparation.
  • Good for retrofit and field-fix scenarios.
  • Quick installation with minimal tools.

Disadvantages:

  • Larger physical size may create congestion.
  • Bolts must be torqued correctly to meet tensile criteria.

Design Considerations

  • Structural Requirements: Ensure the coupler meets the necessary strength and ductility requirements, especially in seismic zones where Type 2 splices are mandatory.
  • Construction Method: For precast or staged construction, grouted couplers may be more suitable.
  • Rebar Congestion: In heavily reinforced areas, compact couplers like threaded or swaged types can reduce congestion.
  • Installation Constraints: If rebar rotation is not possible, positional couplers or grouted sleeves are preferable.
  • Retrofit Applications: Bolted or shear-pin couplers are advantageous for retrofit scenarios due to their ease of installation.

Summary Table

Coupler Type Advantages Disadvantages Typical Use Cases
Swaged No threading or welding, quick installation, high strength Needs hydraulic tools, calibration critical Congested areas, High seismic zones, prefabrication
Threaded High tensile strength, compact, reusable Threading, double handling, thread cleanliness critical Congested areas, High seismic zones, prefabrication
Grouted No bar rotation needed, misalignment tolerance, good for precast Curing and QA/QC dependent, grout bond strength Precast segments, staged construction
Bolted / Shear-Pin No threading/welding, field-friendly, quick install Bulky size, torque accuracy required Retrofits, field fixes
