Overview

Reinforcement splicing is a critical practice in reinforced concrete construction, enabling continuity of load paths when reinforcement bars (rebars) are interrupted due to design limitations, transportation lengths, or construction staging. Splicing techniques ensure that structural performance is maintained across rebar breaks, whether in vertical columns, beams, slabs, walls, or footings.

There are three primary splicing methods:

  • Lap Splicing (conventional overlap)
  • Mechanical Splicing (using couplers or sleeves)
  • Welded Splicing (typically for large-diameter bars in special applications)

Each method varies in complexity, cost, performance, and suitability for specific applications and codes.

Common Applications

Reinforcement splicing is used across a broad range of structural applications, including:

  • Vertical Continuity in Columns and Walls
  • Rebar Extension in Raft and Pile Caps
  • Segmental Construction (e.g., precast elements, bridges)
  • High-Rise Core Walls and Jump-Formed Cores
  • Seismic Zones where full development of bar strength is critical

Splicing Methods & Technical Considerations

General Rules for Splicing (AS 3600 Clause 13.2.1)

  • ❌ Do not use lap splices:
    • In tension-tie members (e.g. bracing) — these require welding or mechanical splicing.
    • If the bar diameter is greater than 40 mm.
  • ❌ Do not weld near bends or straightened areas of bars — keep welds at least 3 bar diameters away.

Lap Splicing

A lap splice is a method of joining two reinforcement bars by overlapping them longitudinally. This overlap allows stress to transfer from one bar to the other through bond with the surrounding concrete.

Lap splices are simple, cost-effective, and commonly used, but they must be designed properly to ensure they develop the full force in the bar without premature failure.

Step 1: Calculate the Development Length in Tension

$$ L_{sy.tb} = \frac{0.5 \cdot k_3 \cdot k_1 \cdot f_{sy} \cdot d_b}{k_2 \cdot \sqrt{f'_c}} $$
  • \( f_{sy} \) = yield strength (typically 500 MPa)
  • \( d_b \) = bar diameter in mm
  • \( f'_c \) = concrete compressive strength (max 65 MPa)
  • \( k_1 = 1.3 \) if horizontal with >300 mm concrete below; otherwise 1.0
  • \( k_2 = \frac{132 - d_b}{100} \)
  • \( k_3 = 1 - 0.15 \cdot \frac{(c_d - d_b)}{d_b} \), within 0.7 to 1.0

The length calculated must be greater than the following minimum:

$$ L_{sy.t} \geq 0.058 \cdot f_{sy} \cdot k_1 \cdot d_b $$

Why? Because even if the bar is short and the concrete is strong, minimum lengths ensure reliable bond strength.

Step 2: Calculate the Lap Length in Tension

A. Wide Elements

(e.g. slabs, walls, flanges — where bars lie in a wide plane)

$$ L_{sy.t.lap} = k_7 \cdot L_{sy.t} $$
  • \( k_7 = 1.25 \) (standard)
  • Use \( k_7 = 1.0 \) if:
    • Reinforcement provided ≥ 2 × required
    • No more than half of bars at the section are being lapped

🔎 Note: You can ignore the minimum \( 0.058 f_{sy} k_1 d_b \) in this case.

B. Narrow Elements

(e.g. beam webs, column cores — tight spacing and limited confinement)

$$ L_{sy.t.lap} = \max \left( 0.058 \cdot f_{sy} \cdot k_1 \cdot d_b,\; k_7 \cdot L_{sy.t},\; L_{sy.t} + 1.5 \cdot s_b \right) $$
  • \( s_b \) = clear spacing between lapped bars
  • If spacing < \( 3 \cdot d_b \), take \( s_b = 0 \)

Lapped Splices in Compression (AS 3600 Clause 13.2.4)

Step 1: Calculate the Development Length in Compression

$$ L_{sy.cb} = \frac{0.22 \cdot f_{sy}}{\sqrt{f'_c}} \cdot d_b $$

This must not be less than:

  • \( 0.0435 \cdot f_{sy} \cdot d_b \)
  • 200 mm

But: Under Clause 13.2.4, compression lap splices must also be ≥ 300 mm.

Step 2: Apply Compression Lap Length Requirements

$$ L_{sy.c.lap} = \max \left( L_{sy.c},\; 300\ \text{mm},\; 40 \cdot d_b \right) $$

Reduction Case A: With Stirrups or Fitments

If:

  • ≥ 3 sets of transverse reinforcement over the lap
  • And: \( \frac{A_{tt}}{s} \geq \frac{A_b}{1000} \)

Then:

$$ L_{sy.c.lap} = 0.8 \cdot L_{sy.c} $$

Reduction Case B: With Helical Ties

If:

  • ≥ 3 helical turns cross the splice
  • And: \( \frac{A_{tt}}{s} \geq \frac{n \cdot A_b}{6000} \)

Then:

$$ L_{sy.c.lap} = 0.8 \cdot L_{sy.c} $$
  • \( n \): number of bars evenly spaced around the helix
  • \( A_{tt} \): total transverse reinforcement area
  • \( A_b \): area of bar being spliced

Summary Table

Case Lap Length Equation Minimum Requirement
Tension (Wide) \( L_{sy.t.lap} = k_7 \cdot L_{sy.t} \) No lower bound
Tension (Narrow) \( \max(0.058 \cdot f_{sy} \cdot k_1 \cdot d_b,\; k_7 \cdot L_{sy.t},\; L_{sy.t} + 1.5 \cdot s_b) \) All must be checked
Compression (Standard) \( L_{sy.c.lap} = L_{sy.c} \) ≥ 300 mm and ≥ 40 \( d_b \)
Compression (Confined) \( L_{sy.c.lap} = 0.8 \cdot L_{sy.c} \) If confinement conditions are met

Mechanical Splicing (Couplers)

Description: Uses proprietary mechanical devices (e.g., threaded sleeves, swaged fittings) to create a direct load path between bar ends.

Key Advantages:

  • Eliminates the need for lap length
  • Reduces reinforcement congestion
  • Offers consistent performance regardless of bar placement
  • Facilitates staged construction and precast connections

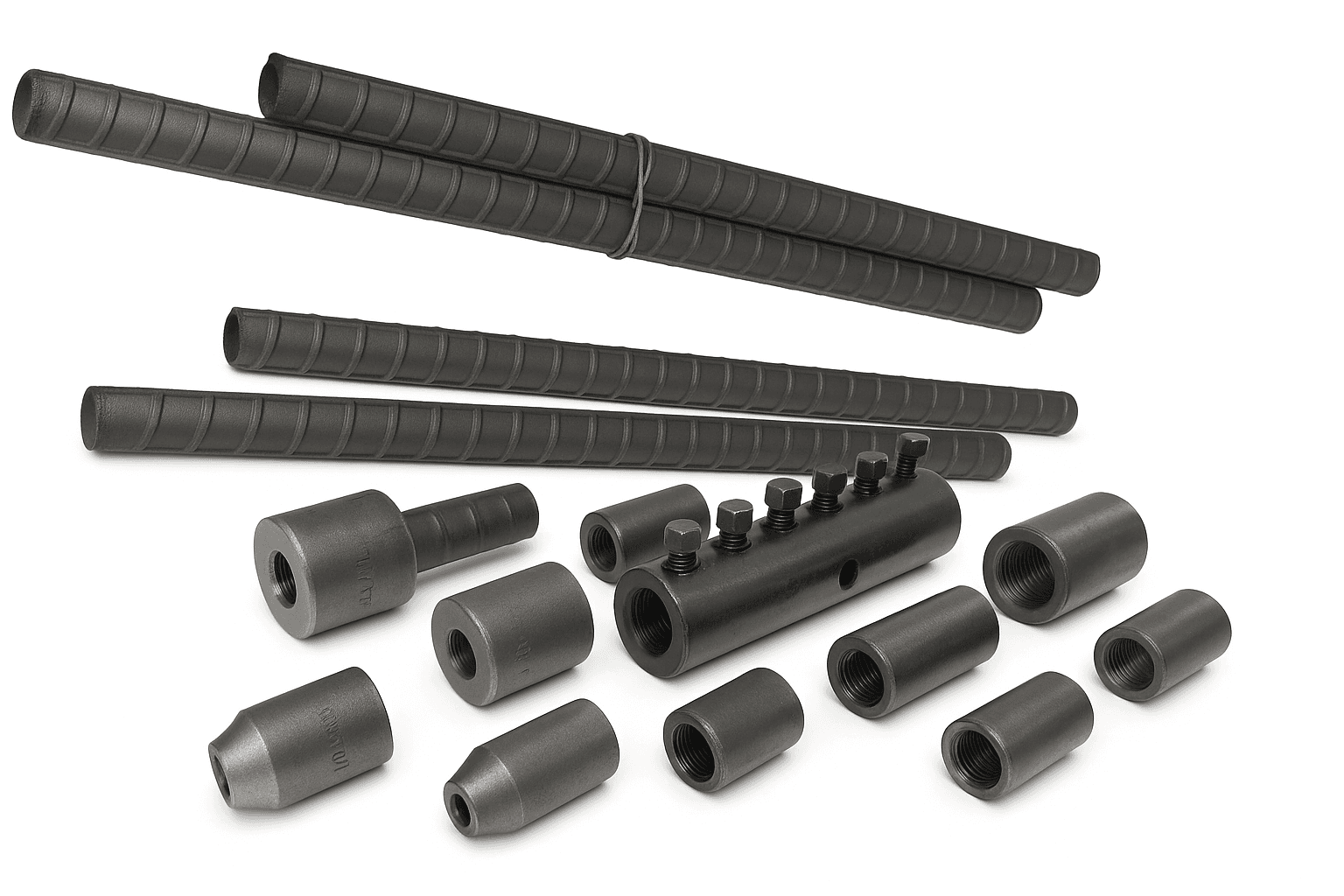

Typical Coupler Types:

  • Threaded: Requires bar-end threading
  • Grouted: Post-installed with grout
  • Swaged: Deformed onto bars with hydraulic tools
  • Bolted or Shear-Pin: For simple, torque-based installation

Design Notes:

  • Type 2 mechanical splices meet full tensile strength requirements and are mandatory in seismic applications
  • Installation and testing procedures must follow manufacturer instructions

Explore mechanical couplers on SpectaCalc for detailed specifications and interactive tools.

Welded Splicing

Description: Involves arc or gas welding of bar ends, typically with lap plates or butt welds.

Considerations:

  • Requires qualified welders and strict quality control
  • Commonly used in regions or industries with robust welding standards (e.g., nuclear, defense)
  • Susceptible to heat-affected zone cracking if improperly executed
  • Rare in commercial building construction due to QA complexity and speed

Specification & Selection Guidance

When choosing a splicing method, consider:

Factor Lap Splice Mechanical Splice Welded Splice
Structural PerformanceMediumHighHigh
Congestion ManagementPoorExcellentGood
Cost per SpliceLowMedium-HighHigh
Labour & QA ComplexityLowMediumHigh
Seismic SuitabilityLimitedPreferredCase-by-case
Precast CompatibilityLimitedExcellentPoor

Design Tools:

  • Use SpectaCalc's Reinforcement Develpment Length and Lap Length calculator to quickly calculate these lengths.
  • A wide range of couplers can be found among the listings on SpectaCalc
