Aluminum Profiles

Azoogi’s aluminium profile range offers versatile solutions for LED strip installations, including surface-mounted, recessed, corner, trimless recessed, suspended, and bendable options. Sizes vary from compact mini (7.8×9mm) to large-scale Concord (50×75mm), with finishes in anodised, black, or custom powder coat. All profiles include PC diffusers, accessories, efficient heat dissipation, and a 5-year warranty, suitable for architectural, retail, residential, and commercial lighting.

Product Selector

Categories

Dimensions

PROM

PROM: Aluminium Mini Surfaced Profile

PR001

PR001: Aluminium Recessed Profile

PR002

PR002: Aluminium Surfaced Profile

PR005

PR005: Aluminium Recessed Profile

PR006

PR006: Aluminium Surfaced Profile

PR007

PR007: Aluminium Corner Profile (Square)

PR008

PR008: Aluminium Corner Profile (Round)

PR009

PR009: Aluminium Corner Profile (Flat)

PR016

PR016: Aluminium Surface Profile

PR021

PR021: Aluminium Profile (Surface Mounted/Suspended)

PR115

PR115: Aluminium Trimless Recessed Plaster Profile

PR125

PR125: Aluminium Bendable Profile

PR126

PR126: Harmony Profile (Surface Mounted/Pendant)

PR127

PR127: Concord Profile (Surface Mounted/Pendant)

PR130

PR130: Aluminium Trimless Deep Wall Washer Profile

PR131

PR131: Aluminium Trimless Wall Washer Profile

ProfileClip

EndCap-Profile

Diffuser

Suspension Kit

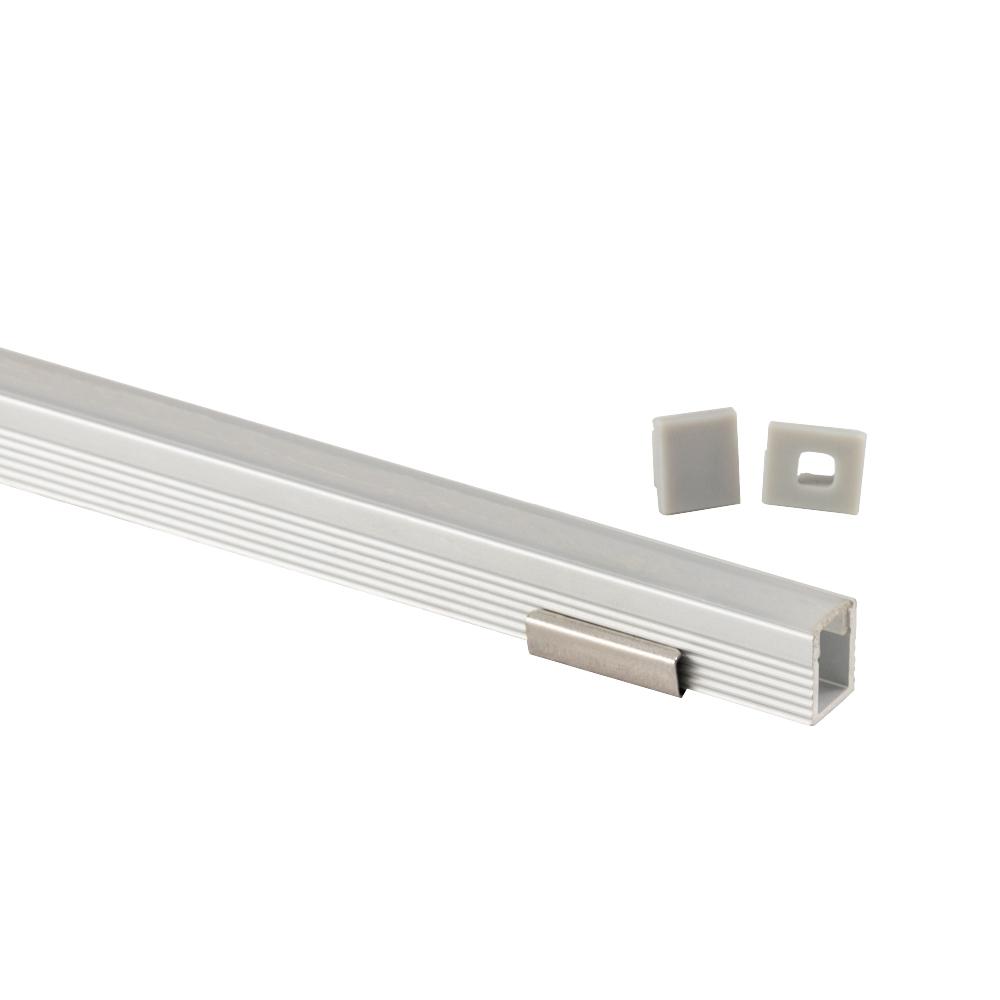

PROM (Mini)
- Dimensions: 7.8 × 9 mm :contentReference[oaicite:0]{index=0}
- Installation: Surface mounted :contentReference[oaicite:1]{index=1}
- Length: 2 m (custom cuts up to 2 m) :contentReference[oaicite:2]{index=2}
- Finish: Anodised aluminium / custom powder coated :contentReference[oaicite:3]{index=3}
- Diffuser: PC (frosted/diffused) :contentReference[oaicite:4]{index=4}
- Accessories: Clips, endcaps :contentReference[oaicite:5]{index=5}
- Warranty: 5 years; Applications: Architectural, retail, residential, commercial :contentReference[oaicite:6]{index=6}
PR002
- Dimensions: 17.1 × 8 mm :contentReference[oaicite:7]{index=7}
- Installation: Surface mounted :contentReference[oaicite:8]{index=8}
- Length: 2 m (custom cuts up to 2 m) :contentReference[oaicite:9]{index=9}
- Finish: Anodised aluminium / custom powder coated :contentReference[oaicite:10]{index=10}
- Diffuser: PC :contentReference[oaicite:11]{index=11}
- Accessories: Clips, endcaps :contentReference[oaicite:12]{index=12}
- Warranty & Applications: 5 years; Architectural, retail, residential, commercial :contentReference[oaicite:13]{index=13}

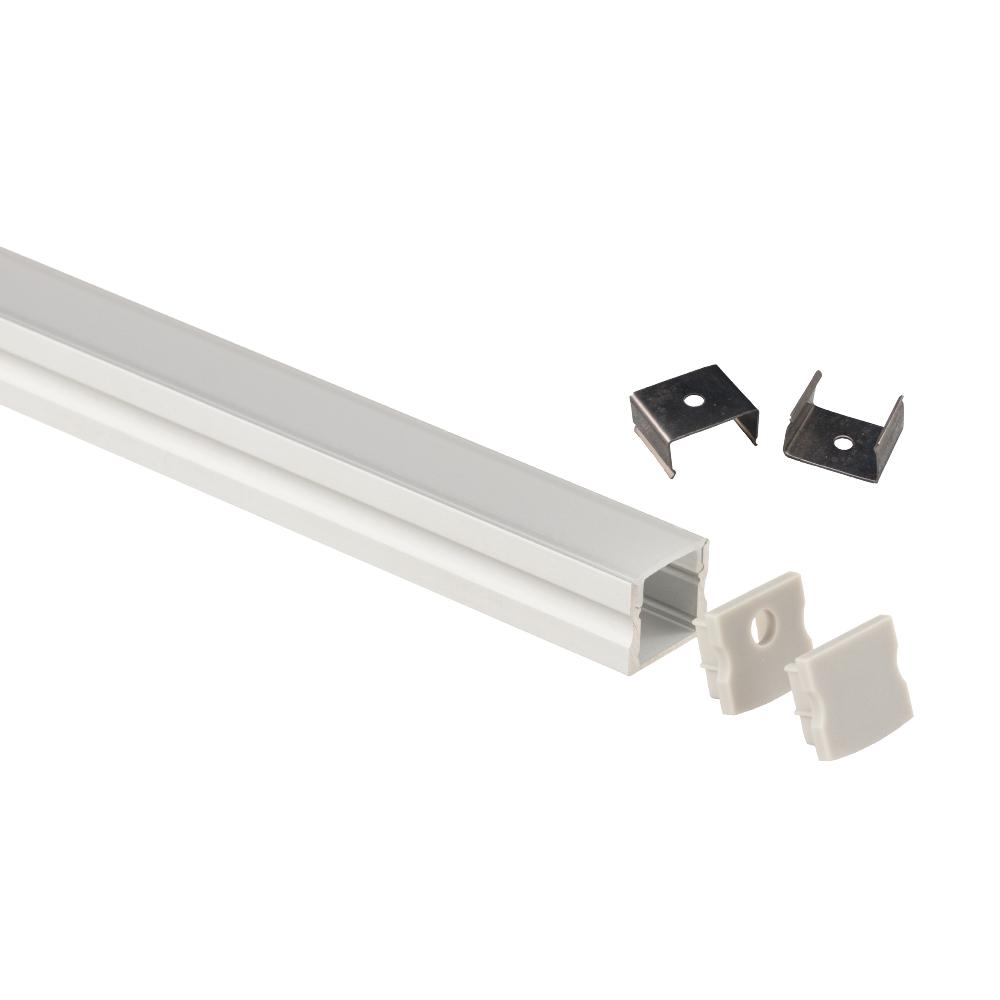

PR006
- Dimensions: 17.1 × 15.3 mm :contentReference[oaicite:14]{index=14}
- Installation: Surface mounted :contentReference[oaicite:15]{index=15}
- Length/Finish/Diffuser: 2 m; anodised/custom powder coat; PC :contentReference[oaicite:16]{index=16}
- Accessories: Clips, endcaps :contentReference[oaicite:17]{index=17}
- Warranty & Applications: 5 years; Architectural, retail, residential, commercial :contentReference[oaicite:18]{index=18}

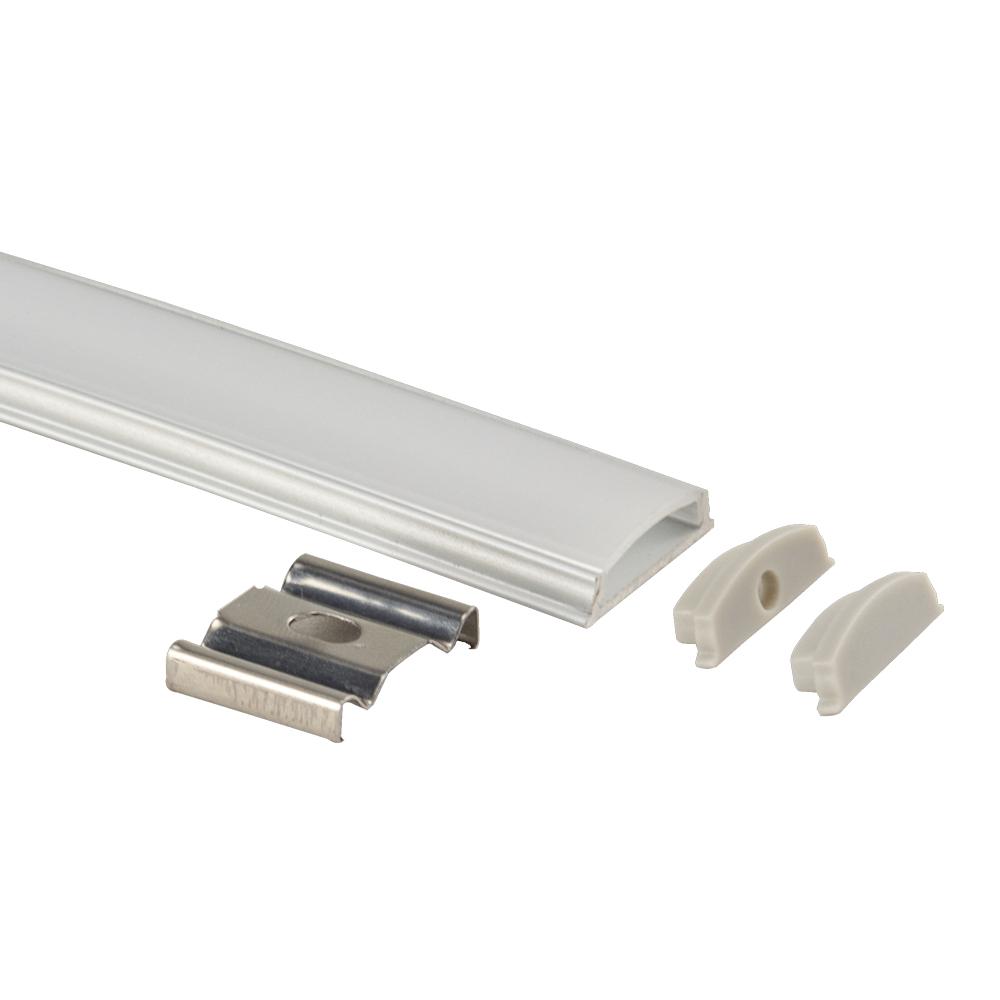

PR016
- Dimensions: 23.5 × 10 mm :contentReference[oaicite:19]{index=19}
- Installation: Surface mounted :contentReference[oaicite:20]{index=20}
- Length/Finish/Diffuser: 2 m; anodised/custom powder coat; PC :contentReference[oaicite:21]{index=21}
- Accessories: Clips, endcaps :contentReference[oaicite:22]{index=22}
- Warranty & Applications: 5 years; Architectural, retail, residential, commercial :contentReference[oaicite:23]{index=23}

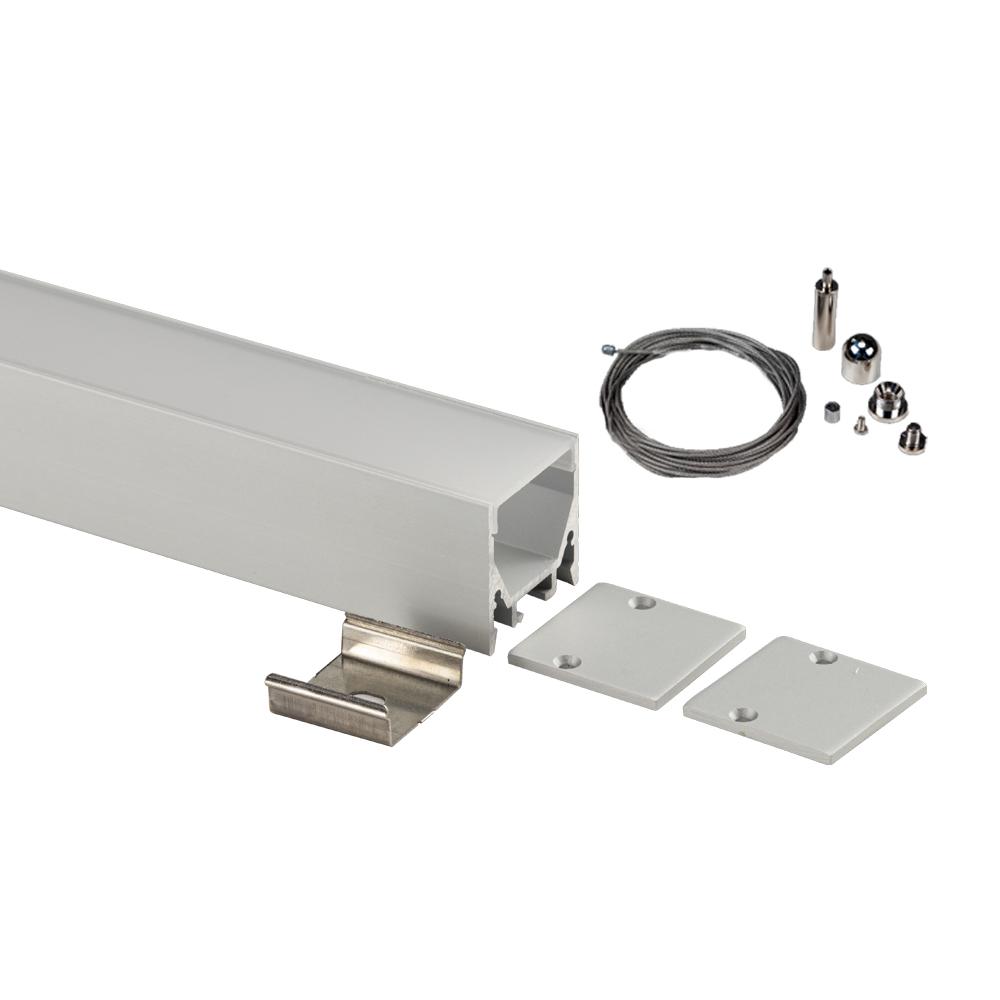

PR021
- Dimensions: 35 × 35 mm :contentReference[oaicite:24]{index=24}
- Installation: Surface mounted / suspended :contentReference[oaicite:25]{index=25}
- Length: 3 m (custom cuts up to 3 m) :contentReference[oaicite:26]{index=26}
- Finish/Diffuser: Anodised/black/custom powder coat; PC :contentReference[oaicite:27]{index=27}
- Accessories: Clips, endcaps, steel wire (2 per metre) :contentReference[oaicite:28]{index=28}
- Warranty & Applications: 5 years; Architectural, retail, residential, commercial :contentReference[oaicite:29]{index=29}

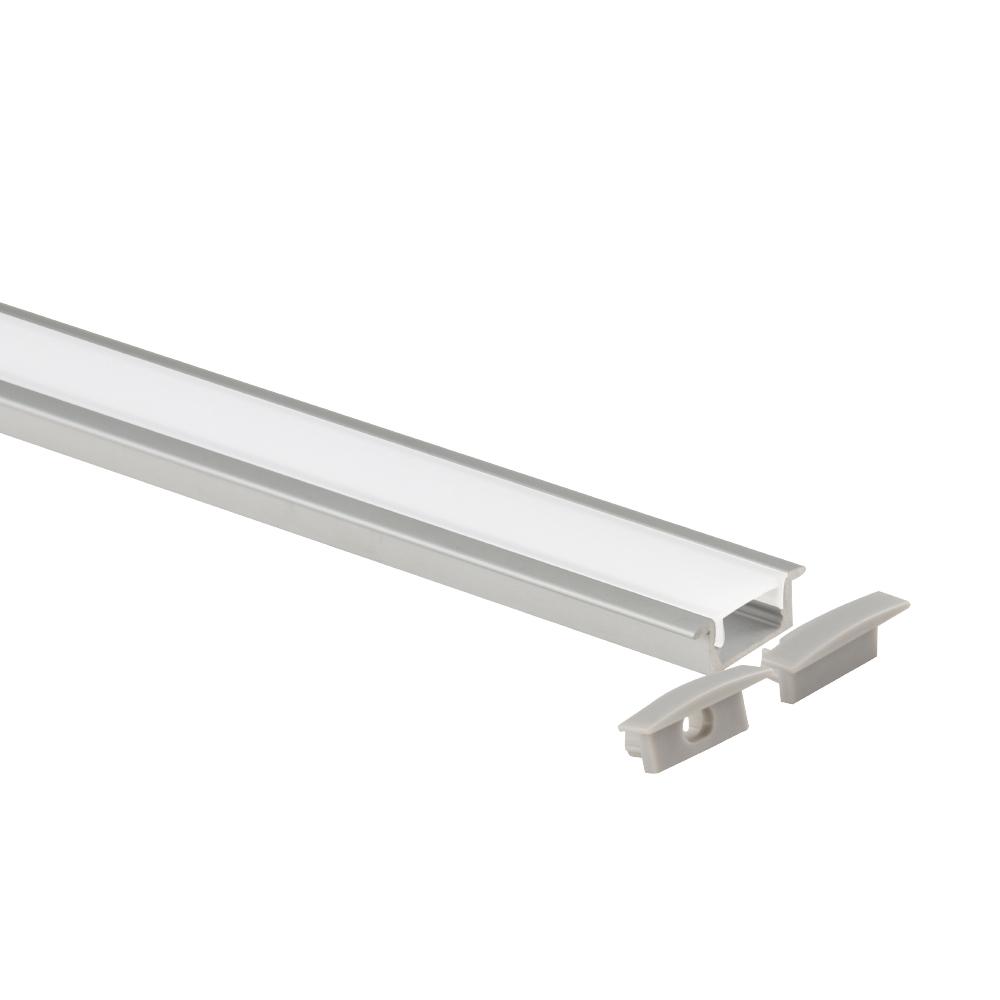

PR001
- Dimensions: 23.2 × 8 mm :contentReference[oaicite:30]{index=30}
- Installation: Recessed :contentReference[oaicite:31]{index=31}
- Length/Finish/Diffuser: 2 m; anodised/custom powder coat; PC :contentReference[oaicite:32]{index=32}
- Accessories: Endcaps :contentReference[oaicite:33]{index=33}
- Warranty & Applications: 5 years; Architectural, retail, residential, commercial :contentReference[oaicite:34]{index=34}

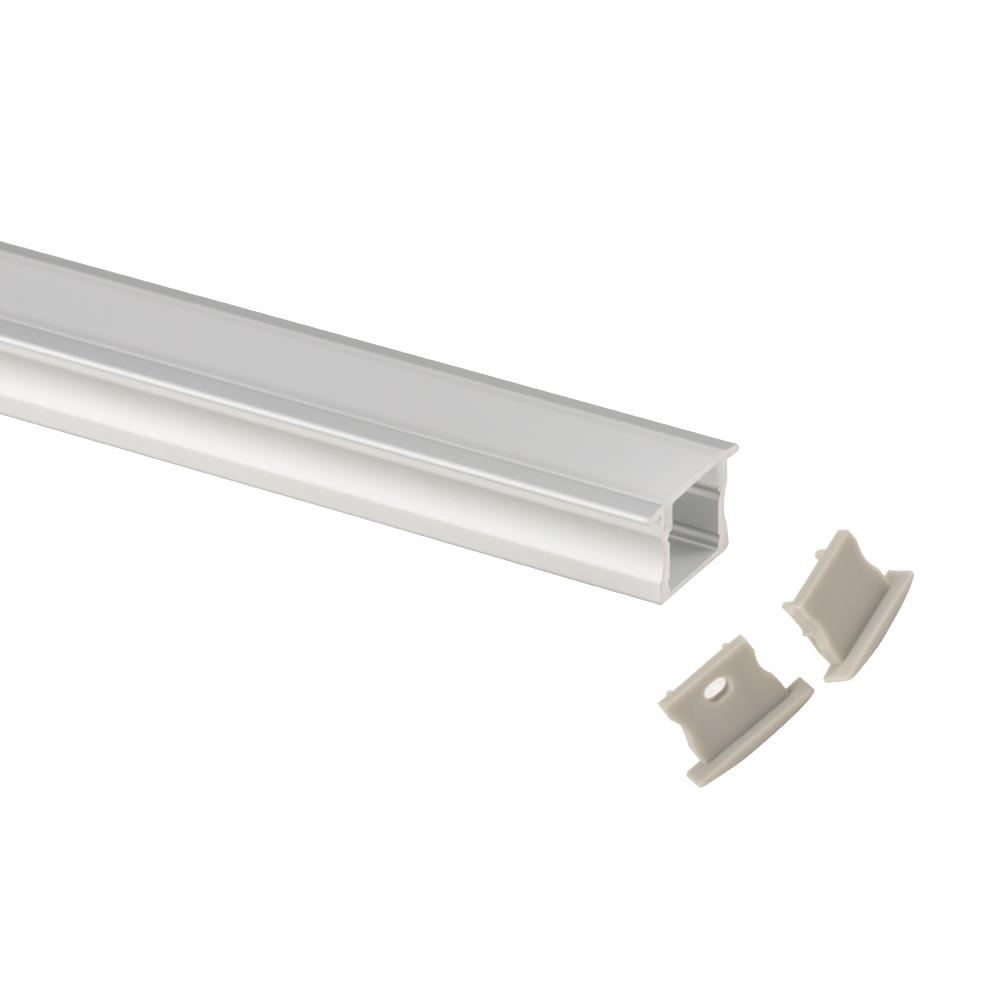

PR005
- Dimensions: 23.2 × 15.3 mm :contentReference[oaicite:35]{index=35}
- Installation: Recessed :contentReference[oaicite:36]{index=36}
- Length/Finish/Diffuser: 2 m; anodised/custom powder coat; PC :contentReference[oaicite:37]{index=37}
- Accessories: Endcaps :contentReference[oaicite:38]{index=38}
- Warranty & Applications: 5 years; Architectural, retail, residential, commercial :contentReference[oaicite:39]{index=39}

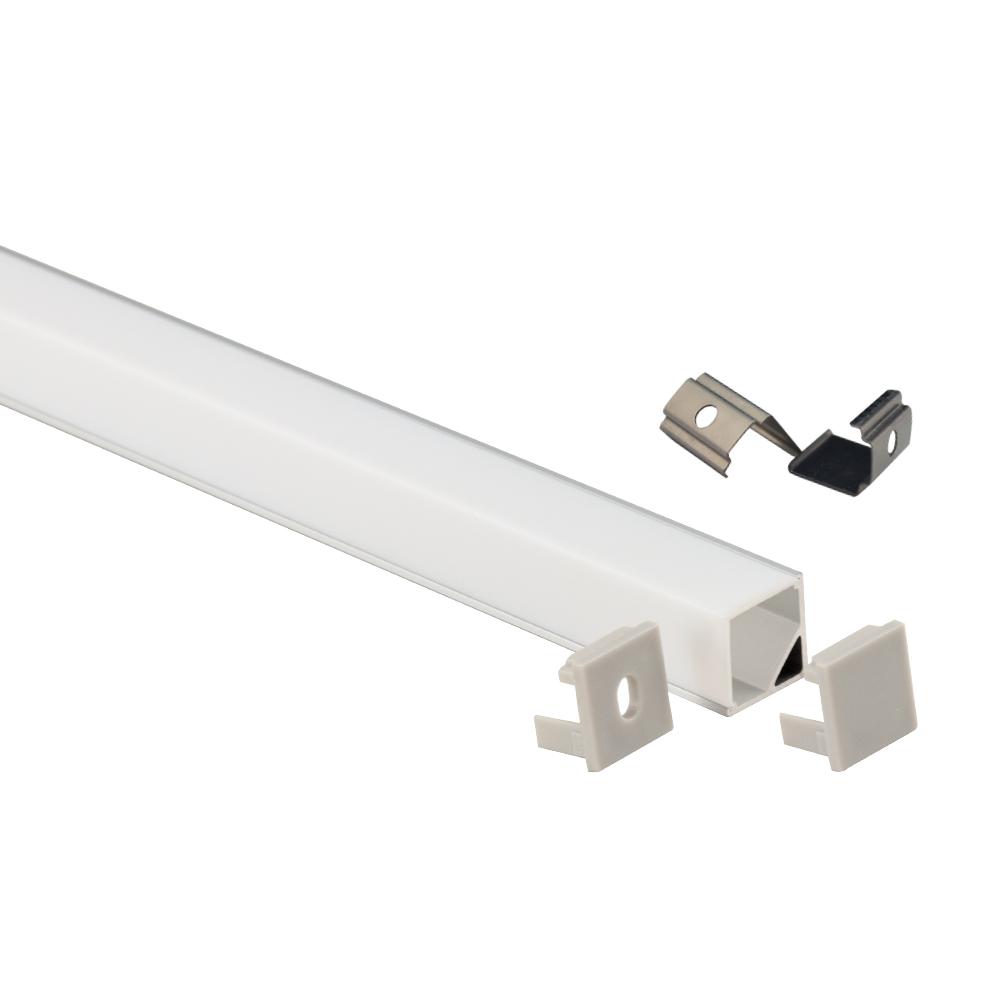

PR007 (Square Corner)
- Dimensions: 16 × 16 mm :contentReference[oaicite:40]{index=40}
- Installation: Surface mounted (corner) :contentReference[oaicite:41]{index=41}
- Length/Finish/Diffuser: 2 m; anodised/custom powder coat; PC :contentReference[oaicite:42]{index=42}
- Accessories: Clips, endcaps :contentReference[oaicite:43]{index=43}
- Warranty & Applications: 5 years; Architectural, retail, residential, commercial :contentReference[oaicite:44]{index=44}

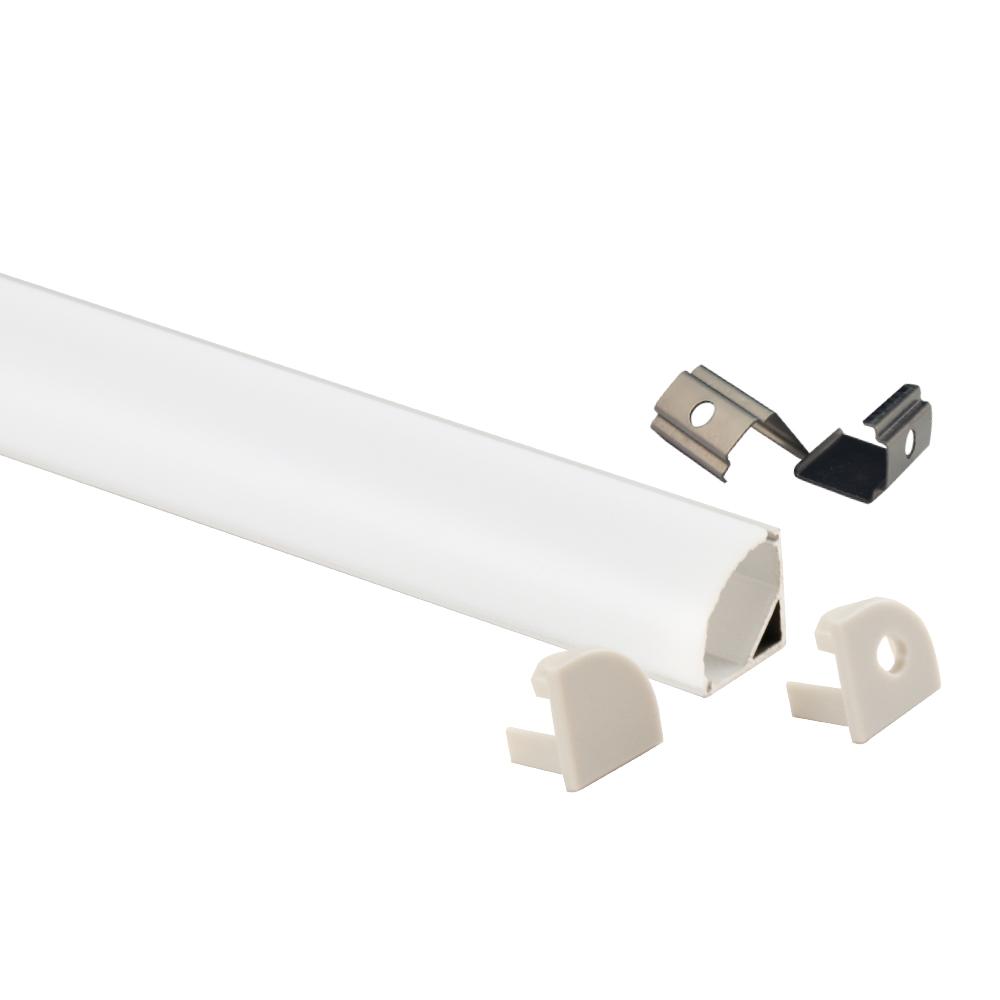

PR008 (Round Corner)
- Dimensions: 16 × 16 mm :contentReference[oaicite:45]{index=45}
- Installation: Surface mounted (corner, rounded) :contentReference[oaicite:46]{index=46}
- Length/Finish/Diffuser: 2 m; anodised/custom powder coat; PC :contentReference[oaicite:47]{index=47}
- Accessories: Clips, endcaps :contentReference[oaicite:48]{index=48}
- Warranty & Applications: 5 years; Architectural, retail, residential, commercial :contentReference[oaicite:49]{index=49}
PR009 (Corner)
- Dimensions: 18.4 × 18.4 mm :contentReference[oaicite:50]{index=50}
- Installation: Surface mounted (corner) :contentReference[oaicite:51]{index=51}
- Length/Finish/Diffuser: 2 m; anodised/custom powder coat; PC :contentReference[oaicite:52]{index=52}
- Accessories: Clips, endcaps :contentReference[oaicite:53]{index=53}
- Warranty & Applications: 5 years; Architectural, retail, residential, commercial :contentReference[oaicite:54]{index=54}

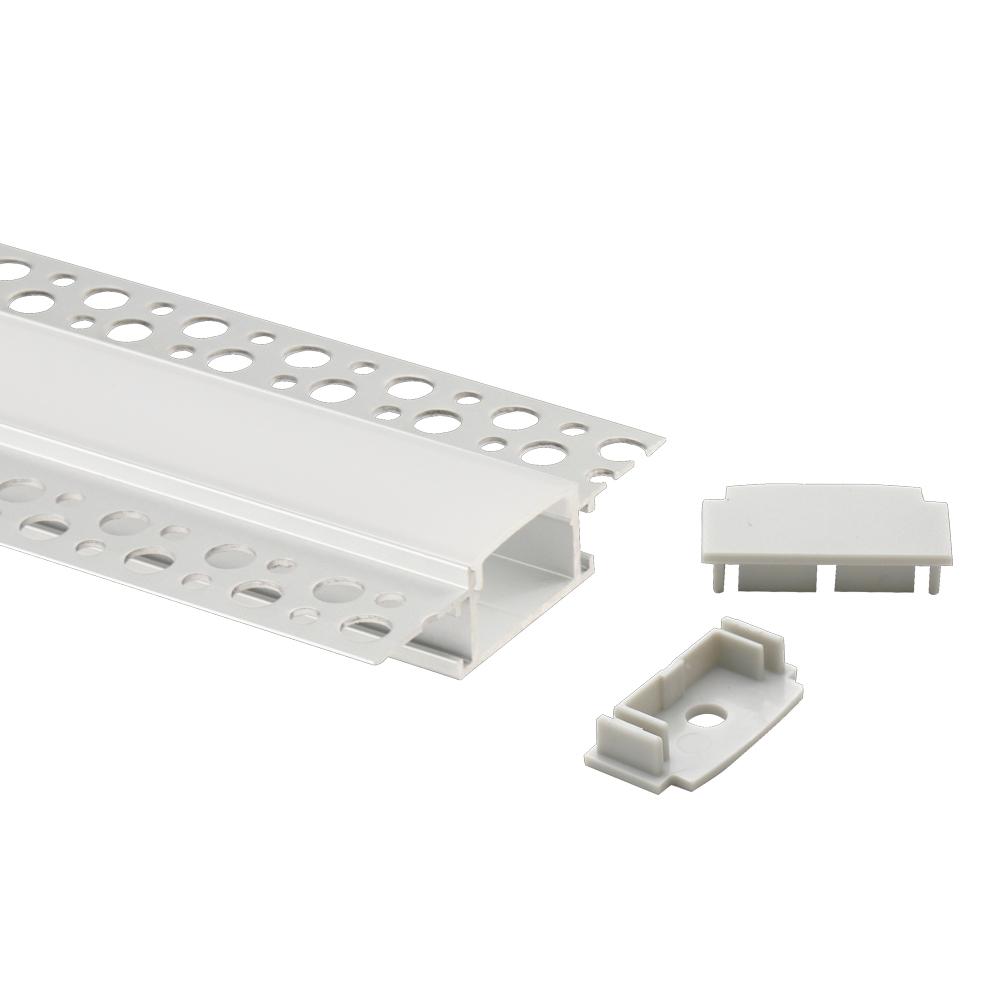

PR115 (Trimless Recessed)
- Dimensions: 61.5 × 28.5 mm; Drywall: 12.5 mm :contentReference[oaicite:55]{index=55}
- Installation: Trimless recessed (flush drywall) :contentReference[oaicite:56]{index=56}
- Length/Finish/Diffuser: 2 m; anodised/custom powder coat; PC :contentReference[oaicite:57]{index=57}
- Accessories: Endcaps :contentReference[oaicite:58]{index=58}
- Warranty & Applications: 5 years; Architectural, retail, residential, commercial :contentReference[oaicite:59]{index=59}
PR125 (Bendable)
- Dimensions: 18 × 5.6 mm :contentReference[oaicite:60]{index=60}
- Installation: Surface mounted (bendable/flexible) :contentReference[oaicite:61]{index=61}
- Length/Finish/Diffuser: 2 m; anodised/custom powder coat; PC :contentReference[oaicite:62]{index=62}
- Accessories: Clips, endcaps :contentReference[oaicite:63]{index=63}
- Warranty & Applications: 5 years; Architectural, retail, residential, commercial :contentReference[oaicite:64]{index=64}

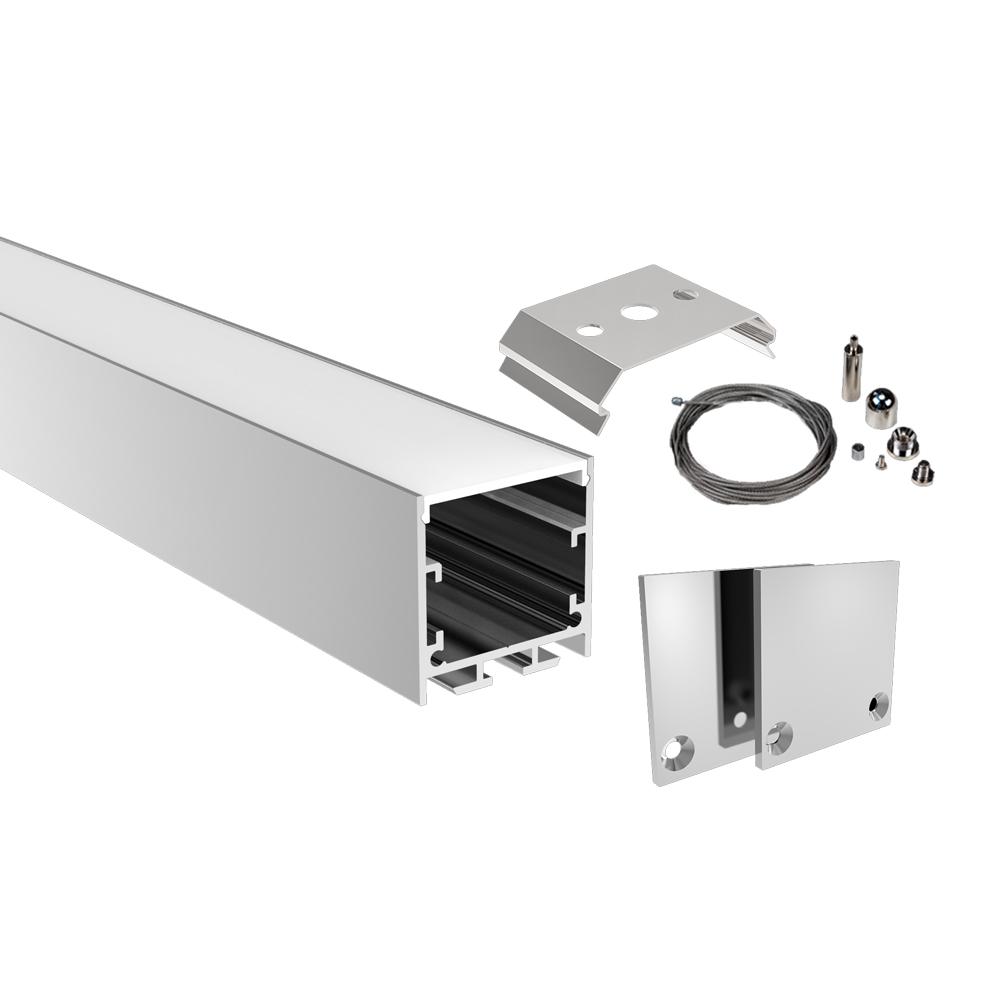

PR126 (Harmony)
- Dimensions: 25.4 × 25.4 mm :contentReference[oaicite:65]{index=65}
- Installation: Surface mounted / suspended :contentReference[oaicite:66]{index=66}
- Length: 3 m (custom cuts up to 3 m) :contentReference[oaicite:67]{index=67}
- Finish/Diffuser/Accessories: Anodised/black/custom powder coat; PC; clips, endcaps, steel wire :contentReference[oaicite:68]{index=68}
- Warranty & Applications: 5 years; Architectural, retail, residential, commercial :contentReference[oaicite:69]{index=69}

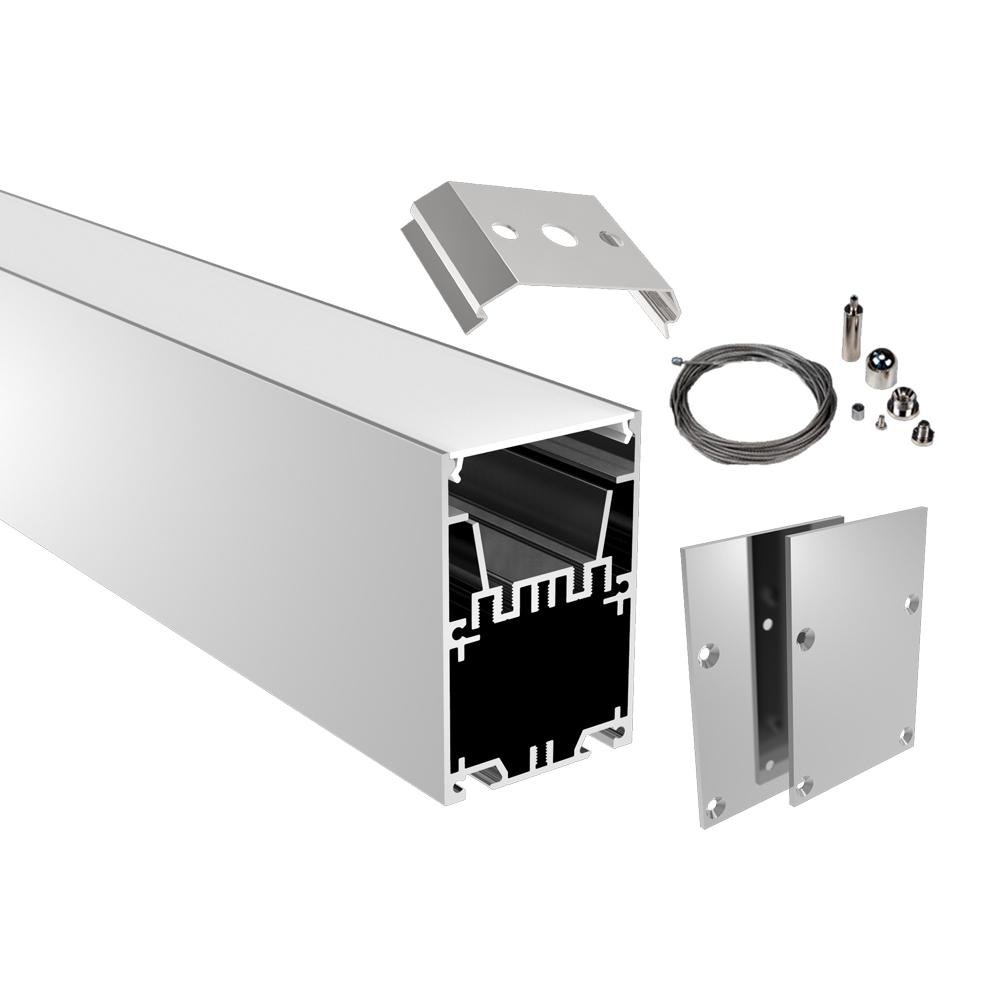

PR127 (Concord)
- Dimensions: 50 × 75 mm :contentReference[oaicite:70]{index=70}
- Installation: Surface mounted / suspended; tongue & groove joinery for longer runs :contentReference[oaicite:71]{index=71}
- Length: 3 m (custom cuts up to 3 m) :contentReference[oaicite:72]{index=72}
- Finish/Diffuser/Accessories: Anodised/black/custom powder coat; PC; clips, endcaps, steel wire :contentReference[oaicite:73]{index=73}
- Warranty & Applications: 5 years; Architectural, retail, residential, commercial :contentReference[oaicite:74]{index=74}

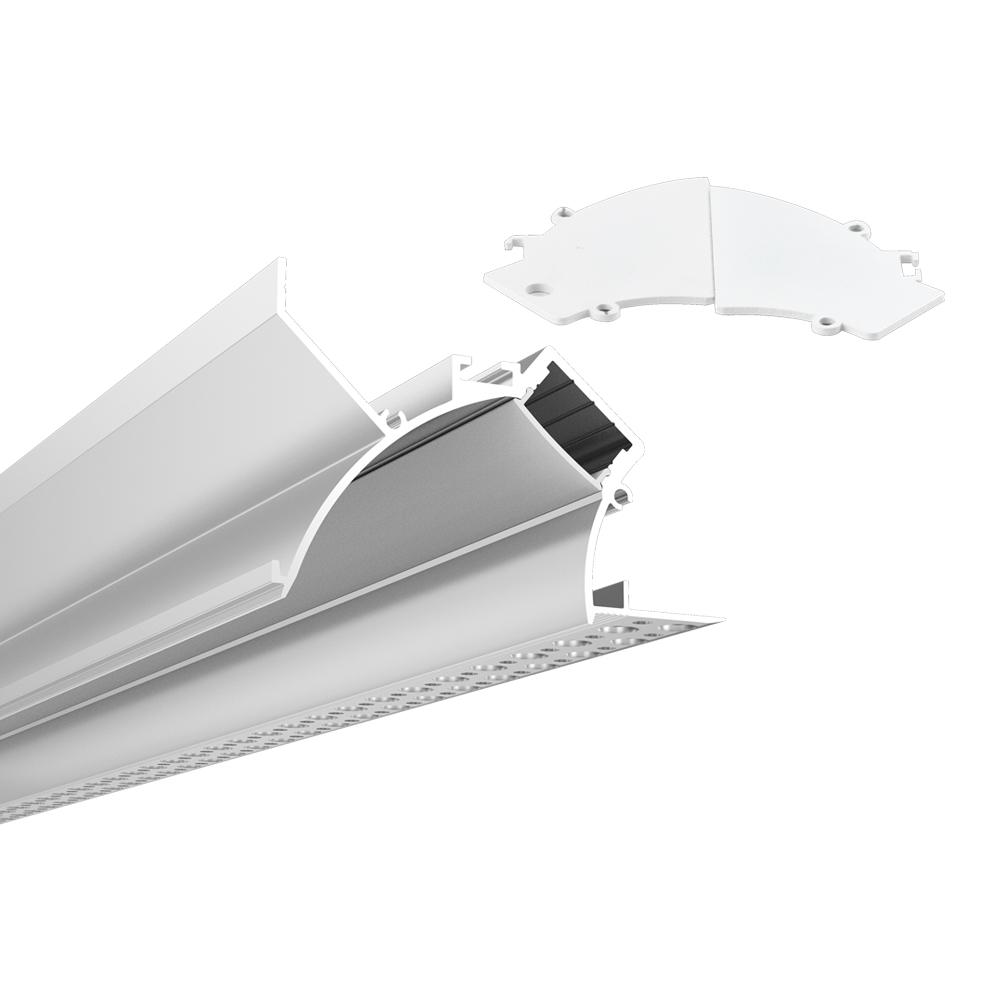

PR130 (Trimless Deep Wall Washer)
- Dimensions: 85.5 × 56.8 mm; Drywall: 12.5 mm :contentReference[oaicite:75]{index=75}
- Installation: Trimless recessed wall washer :contentReference[oaicite:76]{index=76}
- Length/Finish/Diffuser: 2 m; anodised/custom powder coat; PC :contentReference[oaicite:77]{index=77}
- Accessories: Endcaps :contentReference[oaicite:78]{index=78}
- Warranty & Applications: 5 years; Architectural, retail, residential, commercial :contentReference[oaicite:79]{index=79}
PR131 (Trimless Recessed Wall Washer)
- Dimensions: 94.4 × 34 mm; Drywall: 12.5 mm :contentReference[oaicite:80]{index=80}
- Installation: Trimless recessed wall washer :contentReference[oaicite:81]{index=81}
- Length/Finish/Diffuser: 2 m; anodised/custom powder coat; PC :contentReference[oaicite:82]{index=82}
- Accessories: Endcaps :contentReference[oaicite:83]{index=83}
- Warranty & Applications: 5 years; Architectural, retail, residential, commercial :contentReference[oaicite:84]{index=84}
