Garden Lights

The Azoogi Garden Light range offers 3W, 7W, and 12W models, all operating on AC/DC 12–24V with high-performance COB LEDs, IP67 weatherproof aluminium construction, and a 5-year warranty. The 3W delivers 200lm for subtle accents, the 7W outputs 480lm for versatile use, and the 12W provides 750lm for large spaces. All feature anti-glare 60° beams, spike mounts, and black finishes, ideal for pathways, landscapes, and architectural highlights

Product Selector

Categories

Wattage

Color Temperature

GL001

Garden Light 7W | 12V/24V | AC/DC | Warm White

GL002

Garden Light 7W | 12V/24V | AC/DC | Daylight

GL003

Garden Light 12W | 12V/24V | AC/DC | Warm White

GL004

Garden Light 12W | 12V/24V | AC/DC | Daylight

GL005

Garden Light 3W | 12V/24V | AC/DC | Warm White

GL006

Garden Light 3W | 12V/24V | AC/DC | Daylight

GL022

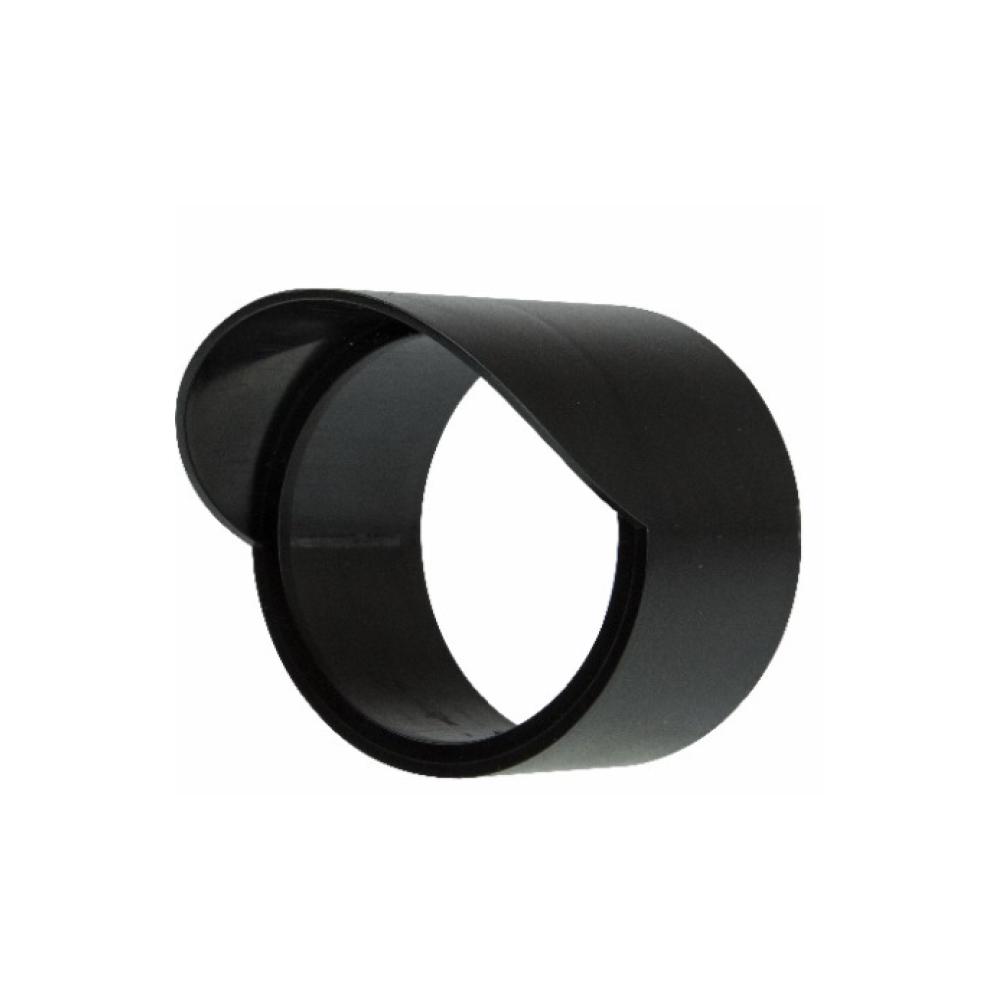

Beam Angle Cap | Compatible with 7W & 12W Garden Lights

Azoogi Garden Lights — Detailed Summary

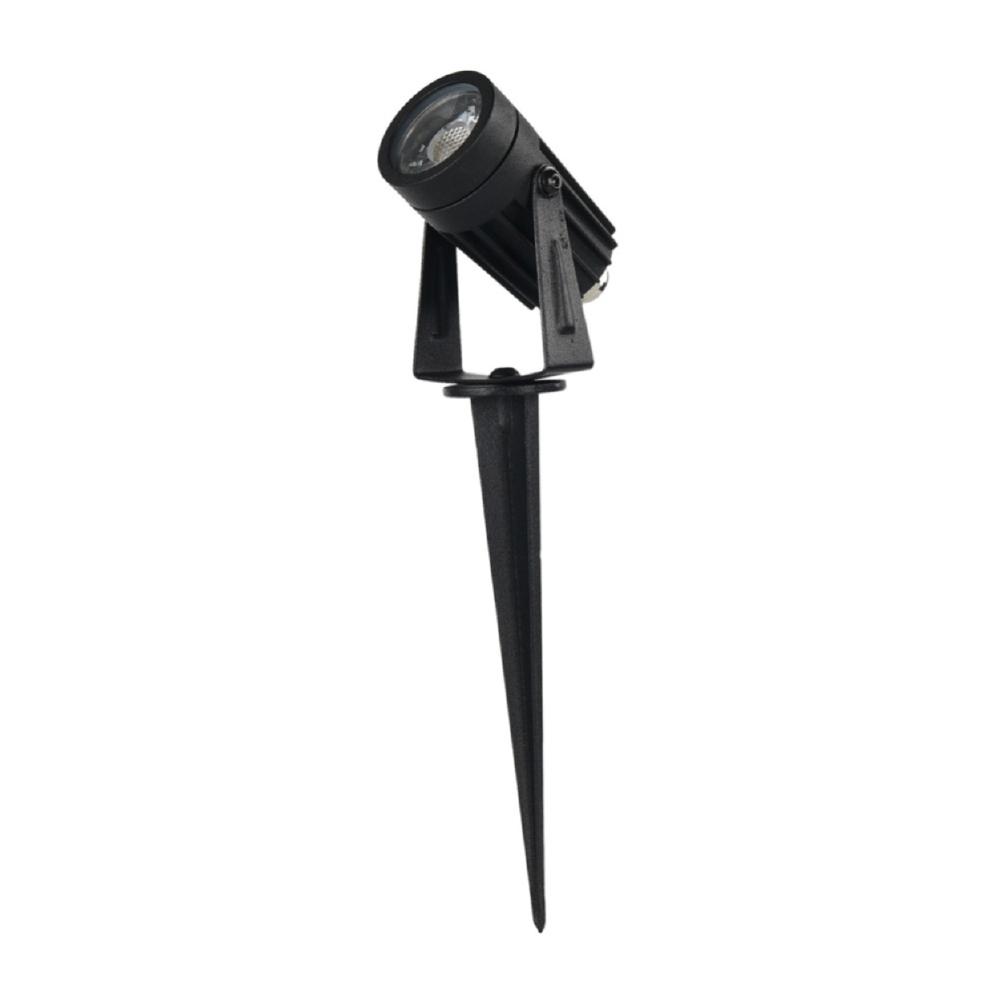

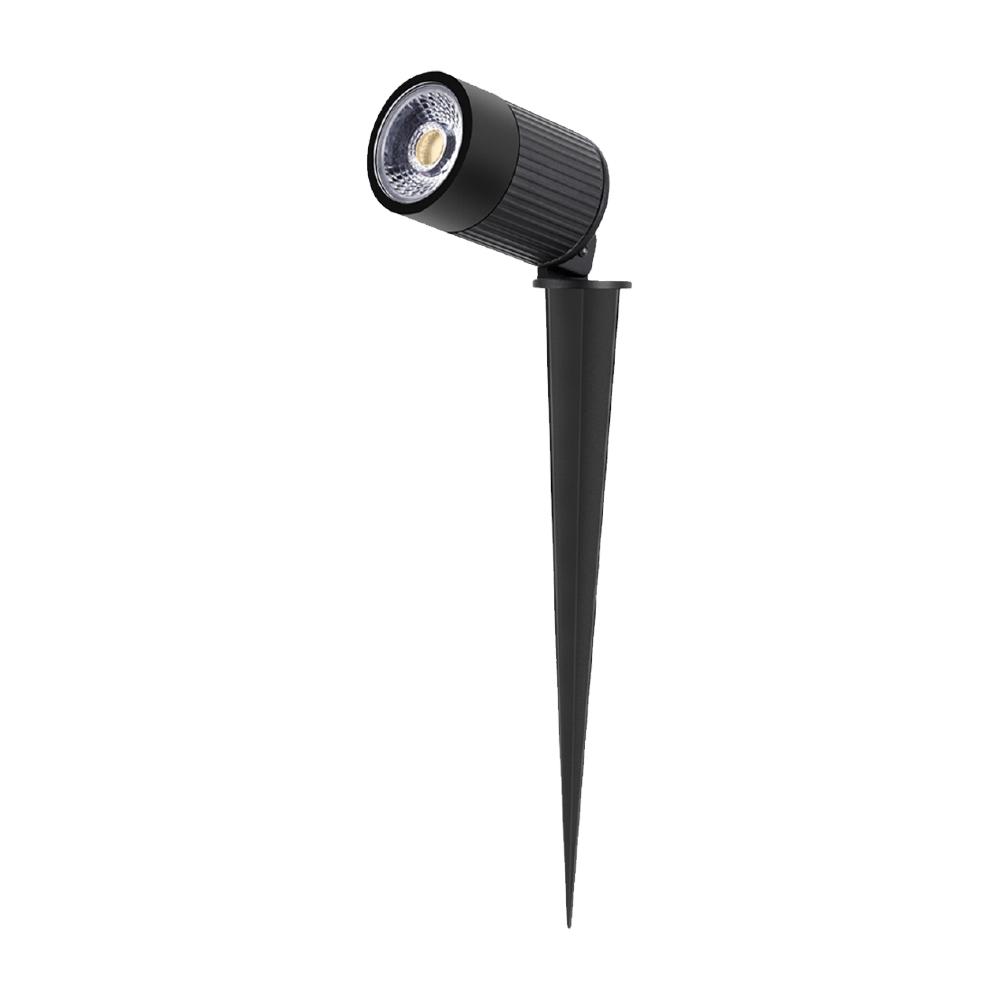

Outdoor LED spike lights in 3W, 7W and 12W variants; all operate on AC/DC 12–24 V and use high-performance COB LEDs. Bodies are aluminium + PC with 316 stainless fasteners and IP67 ingress protection. Supplied in black finish with 1 m double-insulated cable, spike mount, and 5-year warranty. Includes anti-glare, ~60° controlled beam and first-page specification tables in each datasheet.

3 W Garden Light — GL005 (2700 K) / GL006 (6000 K)

Luminous flux: 200 lm; beam angle: 60°.
Dimensions: 40 × 66 × 210 mm. Construction: aluminium + PC; IP67.
Applications: pathways, landscape accents, architectural highlighting; anti-glare distribution for visual comfort.
Guide installation notes: connect in parallel; oversize driver ≥30% of total load; datasheet provides max fittings vs cable cross-section.

7 W Garden Light — GL001 (2700 K) / GL002 (6000 K)

Luminous flux: 480 lm; beam angle: 60°.
Dimensions: 56 × 85.5 × 234 mm. Construction: aluminium + PC; IP67.
Use cases: driveways, gardens, feature lighting for sculptures/plants; hospitality exteriors.
Installation guidance as per series: parallel wiring, ≥30% driver margin; table of max runs by cable size included.

12 W Garden Light — GL003 (2700 K) / GL004 (6000 K)

Luminous flux: 750 lm; beam angle: 60°.
Dimensions: 56 × 85.5 × 234 mm. Construction: aluminium + PC; IP67.
Applications: higher-brightness landscape/architectural accents and broader area highlights.
Installation guidance: parallel circuits, ≥30% driver headroom; datasheet table shows recommended driver sizes and cable lengths.

What’s Included in Each Datasheet

Front-page specification table (product codes, power, voltage, LED type, CCTs, lumens, beam angle, dimensions, materials, IP rating, finish, warranty).
Features & benefits list; typical applications.
Photometric content: luminous intensity curve and “Illuminance at a Distance” chart (with beam diameter and illuminated area by mounting height).
Installation page with wiring notes and table of max fittings vs cable cross-section and recommended Azoogi drivers.
