Handrail Lights

The Azoogi Handrail Light Spot series (I, II, III) are compact LED luminaires designed for seamless integration into round handrails. Available in symmetric and asymmetric beam options, they deliver up to 140lm with high-performance Cree LEDs (CRI>90) in 3000K or 4000K. Built with SS316 and PMMA lenses, rated IP67/IK10, and operating on DC24V, they ensure durability in harsh environments. Spot III adds DMX control. All models feature 50,000hr lifetimes and a 3-year warranty

Product Selector

Type

Beam Angle

Wattage

Color Temperature

Dimmable Type

HRS001

Symmetric 30° | 1.2W | 3000K

HRS002

Symmetric 30° | 1.2W | 4000K

HRS003

Symmetric 60° | 1.2W | 3000K

HRS004

Symmetric 60° | 1.2W | 4000K

HRS005

Asymmetric 50° | 1.2W | 3000K

HRS006

Asymmetric 50° | 1.2W | 4000K

HRS011

Symmetric 30° | 1.5W | 3000K

HRS012

Symmetric 30° | 1.5W | 4000K

HRS013

Symmetric 60° | 1.5W | 3000K

HRS014

Symmetric 60° | 1.5W | 4000K

HRS015

Asymmetric 50° | 1.5W | 3000K

HRS016

Asymmetric 50° | 1.5W | 4000K

HRS021

Symmetric 60° | 1.5W | 3000K

HRS022

Symmetric 60° | 1.5W | 4000K

HRS023

Asymmetric 80° | 1.5W | 3000K

HRS024

Asymmetric 80° | 1.5W | 4000K

Overview

The Azoogi Handrail Light Spot range (I, II, III) provides integrated LED solutions for round handrails in architectural, commercial, and public environments. Each series combines compact form factors, robust construction, and tailored optics to suit varied installations. :contentReference[oaicite:0]{index=0}:contentReference[oaicite:1]{index=1}:contentReference[oaicite:2]{index=2}

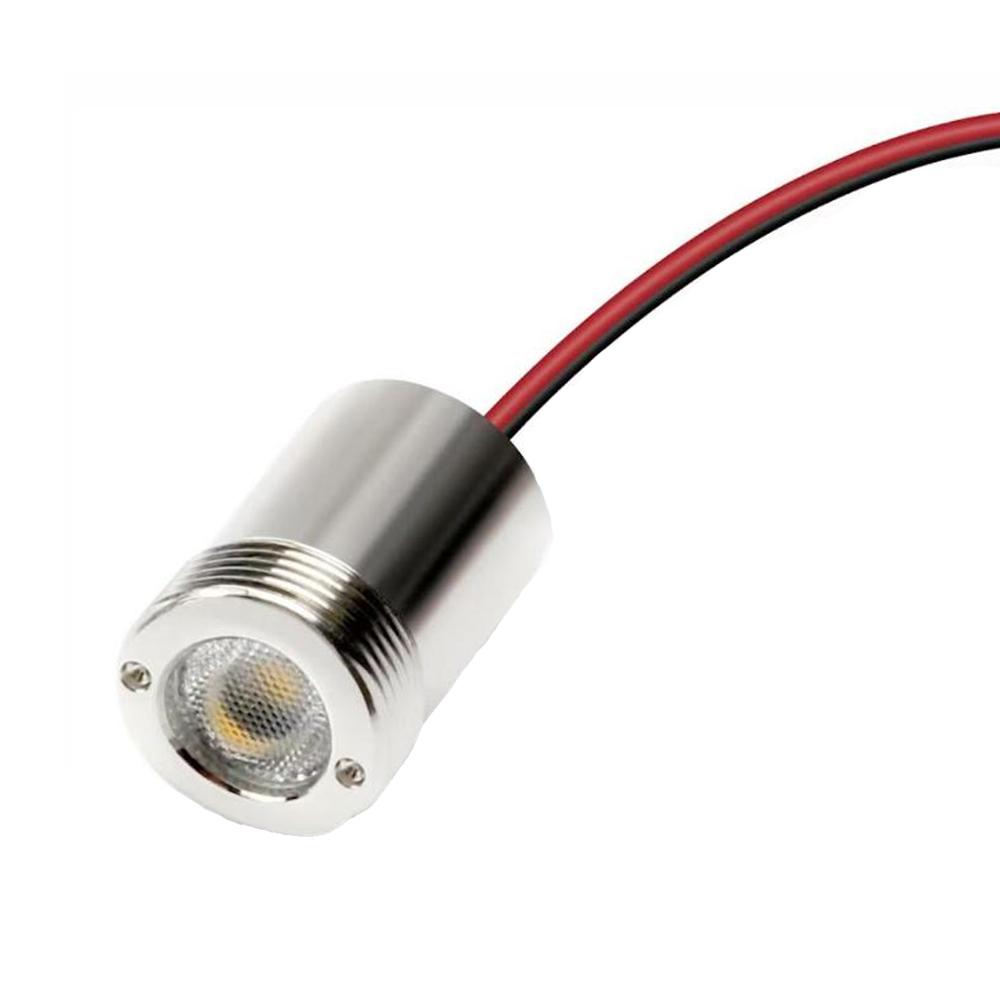

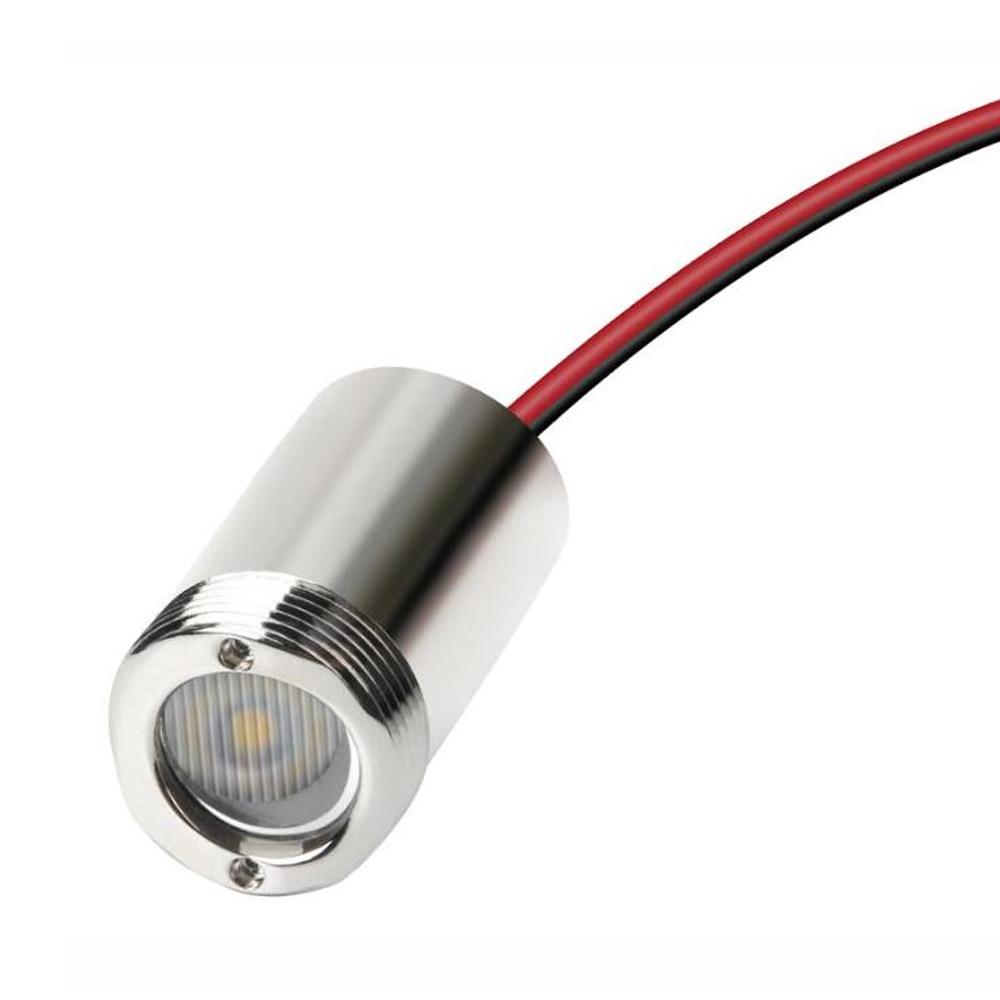

Spot I (HRS001–HRS006) :contentReference[oaicite:3]{index=3}

Power & output: 1.2W, up to 140 lm; CRI >90 (Cree LEDs), 3000K/4000K.
Optics: Symmetric 30°/60° and asymmetric 50°.
Build: Ø18 mm body, SS316/aluminium housing, PMMA lens, IP67, IK10.
Install & life: M18×1 threaded mounting; −40 °C to 50 °C; 50,000 h (Lm80); 30 pcs/100 W driver.
Use cases: Stairs, pathways, transport terminals, coastal/public environments.

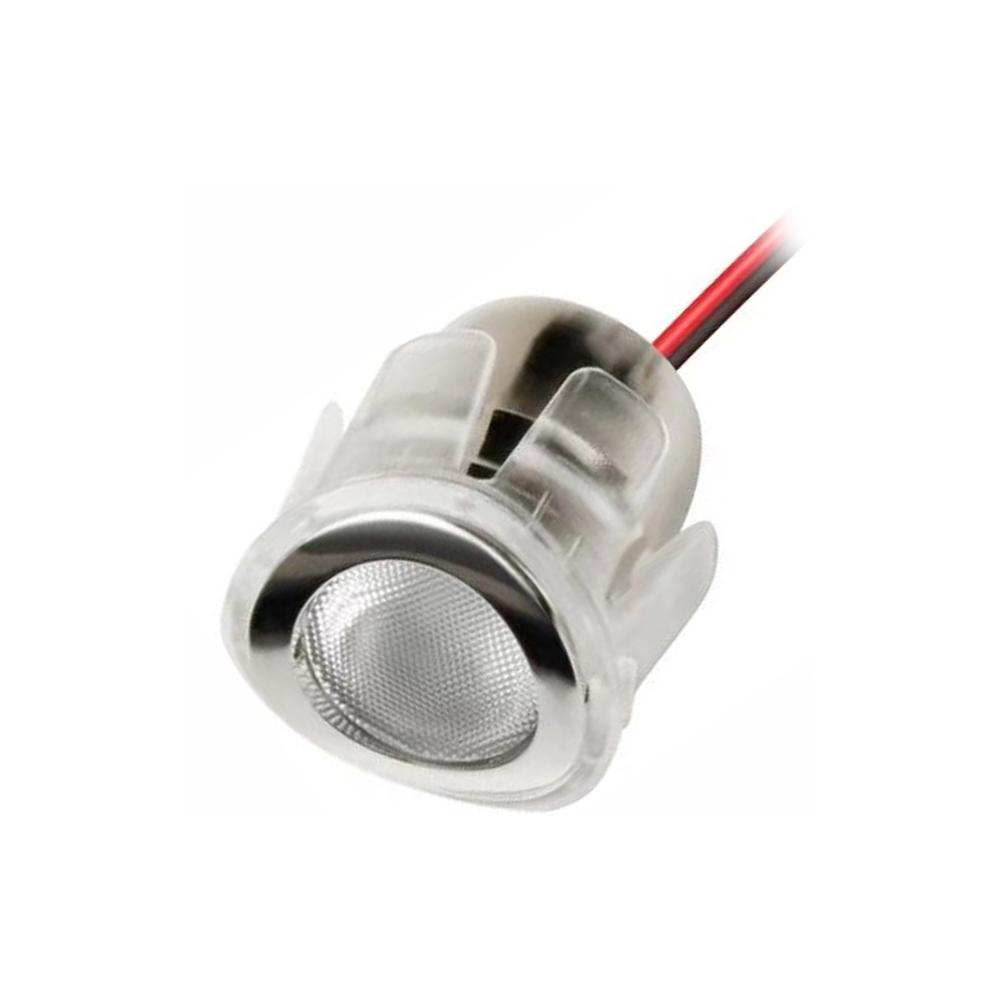

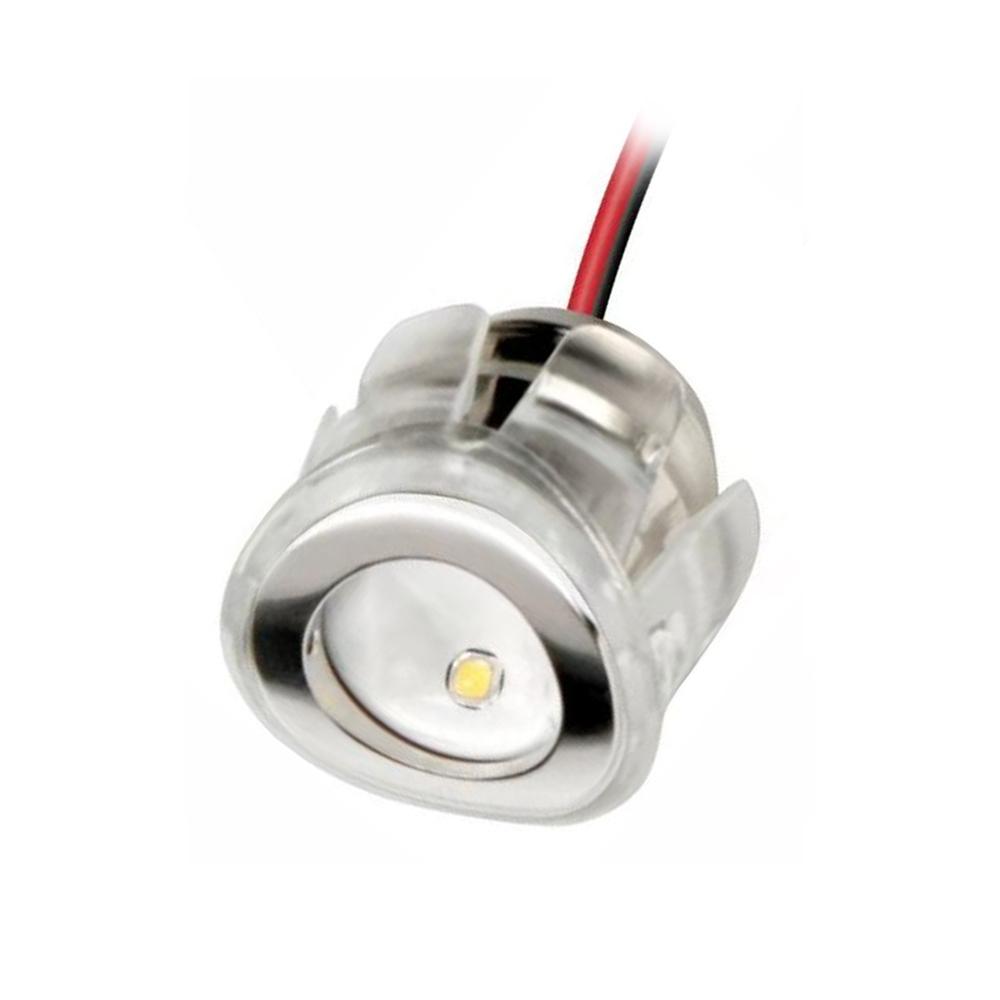

Spot II (HRS011–HRS016) :contentReference[oaicite:4]{index=4}

Power & output: 1.5W, up to 106 lm; CRI >90 (Cree), 3000K/4000K.
Optics: Symmetric 30°/60° and asymmetric 50°.
Build: Ø20 mm body, SS316 housing, PMMA lens, IP67, IK10.
Install & life: Clip-in mounting; −20 °C to 45 °C; 50,000 h (Lm80); 30 pcs/100 W driver.
Use cases: Similar to Spot I with faster installation for public/residential balustrades.

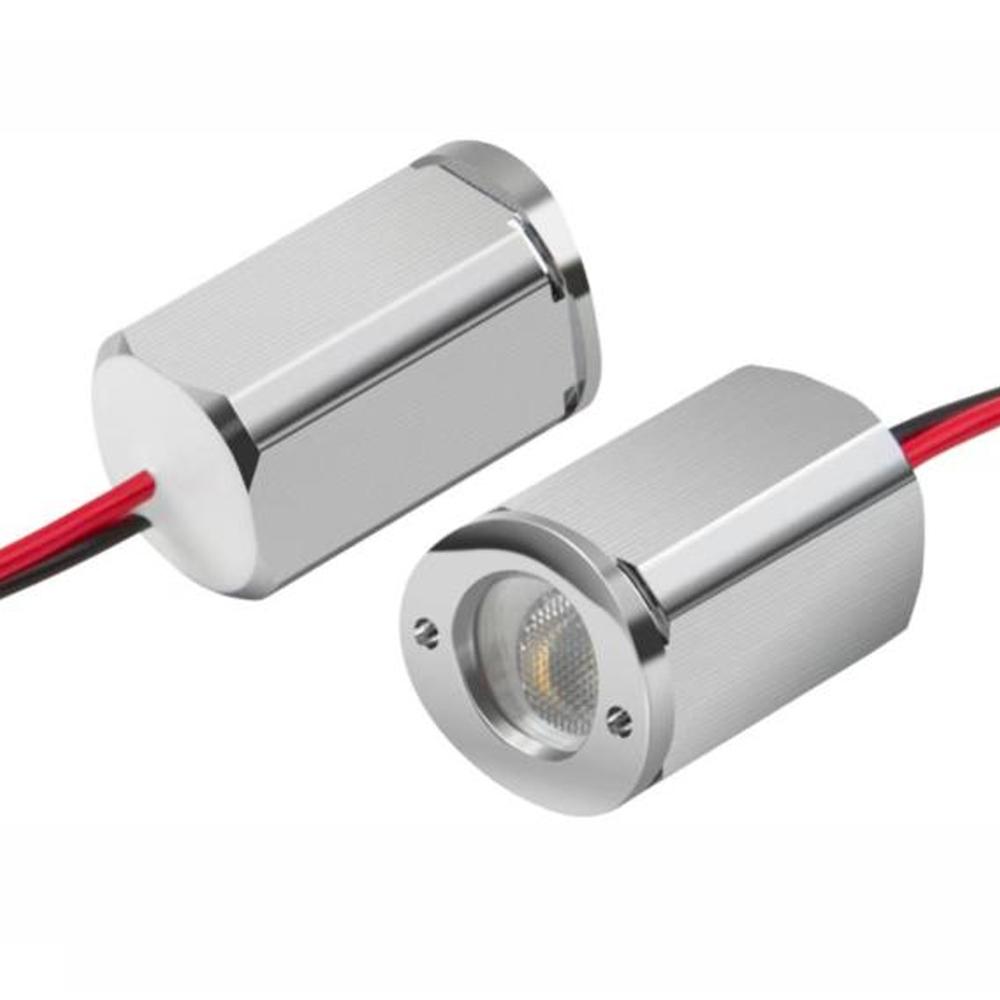

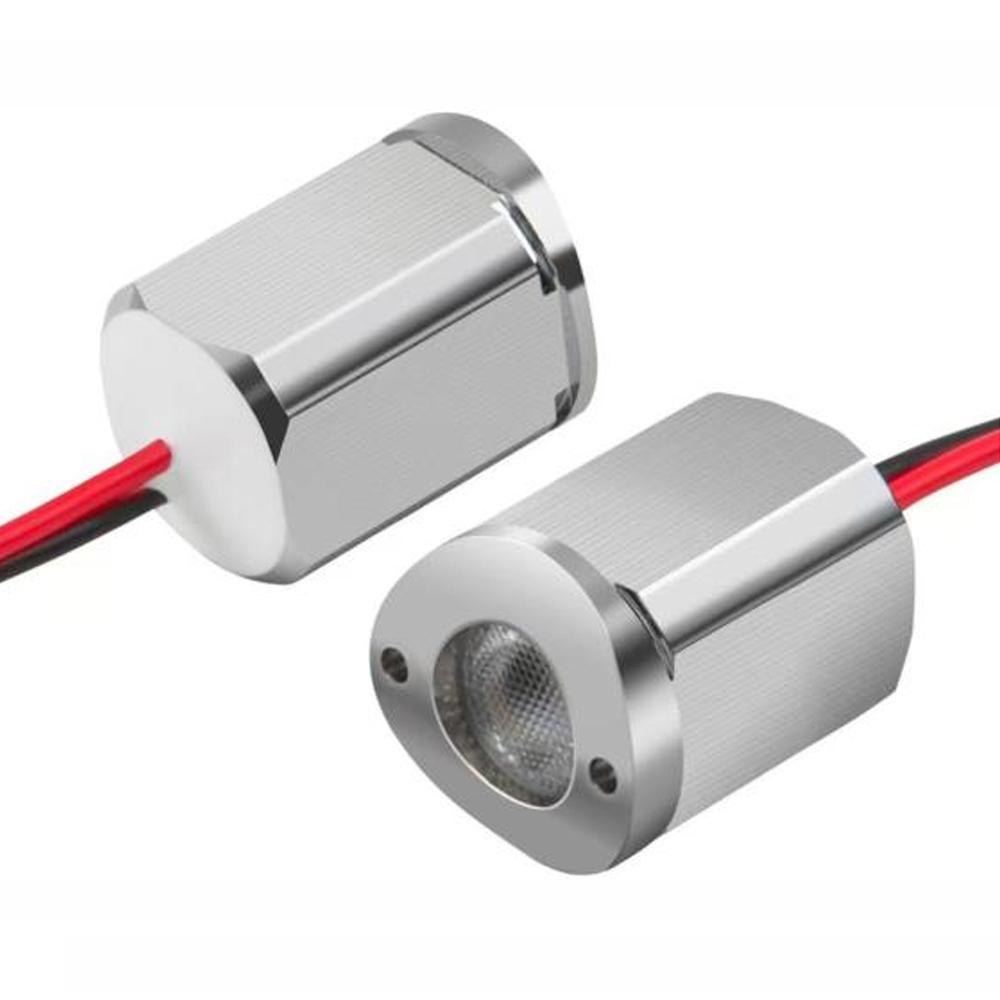

Spot III (HRS021–HRS024) :contentReference[oaicite:5]{index=5}

Power & output: 1.5W, up to 131 lm; CRI >90 (Cree), 3000K/4000K.
Optics: Symmetric 60° and asymmetric 80°.
Build: Ø27–29 mm fittings (some Ø18 mm variant height), SS316 housing, PMMA lens, IP67, IK10.
Controls & life: DMX support; −20 °C to 45 °C; 50,000 h (Lm80); 35 pcs/100 W driver.
Use cases: Larger handrails, architectural projects, advanced/dynamic control scenarios.

Key Differentiators

Spot I: Smallest profile, threaded mount, widest temperature range. :contentReference[oaicite:6]{index=6}
Spot II: Higher power than I, simplified clip-in installation. :contentReference[oaicite:7]{index=7}
Spot III: Highest outputs/beam spread options, DMX capability, higher max load per driver. :contentReference[oaicite:8]{index=8}
