POWERSHORE 150

The Acrow Powershore 150 is a heavy-duty high load propping and shoring system designed to withstand up to 150 tonne shoring loads per vertical member. The flexible Acrow Powershore 150 is primarily used to create temporary stand-alone frames and raking strut structures for the mining, infrastructure, and commercial industries.

Prop tension WLL

1 kN

Prop compression WLL

1 kN

Prop bending WLL

1 kN⋅m

Member Capacity Note

Member capacity may be limited where it is subject to combination stresses such as Bending Moment plus Axial Compression. Specifier to consider reduced member capacity due to stress combinations. Contact Acrow Engineering if in doubt.

Base Connection

Figure:

No base connection

1.1 Prop member axial compression WLL

Figure:

Eccentricity about XX axis

The table is not uploaded or the values for the variables: Eccentricity/bending about do not match table records.

1.2 Bolted connection tension WLL

The table is not uploaded or the values for the variables: do not match table records.

2.1 Prop member bending WLL

Figure:

Bending about XX axis

The table is not uploaded or the values for the variables: do not match table records.

Notes:

Maximum capacity is with component configured as shown; capacity may be limited by other components. Users shall check and ensure all components in the system have sufficient capacities.
Maximum capacity in X-X is governed by the bolt group when a standard 8 bolt connection is installed.
Maximum capacity is with components in working condition. Contact Acrow Engineering if components are damaged during site use.
Limit State Conversion Factor (LSCF) of 1.5.

2.2 Bolted connection bending WLL

The table is not uploaded or the values for the variables: do not match table records.

4.1 Prop Tension Capacity WLL

4.2 Prop Compression Capacity WLL

4.3 Prop Bending Capacity WLL

Components

The Powershore 150 system consists of five major components designed to be joined using M24 G10.9 bolts, including a range of adapters:

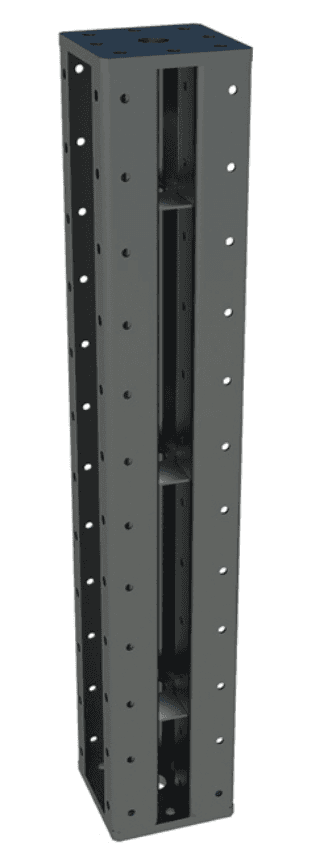

100mm to 2400mm Props / Beams

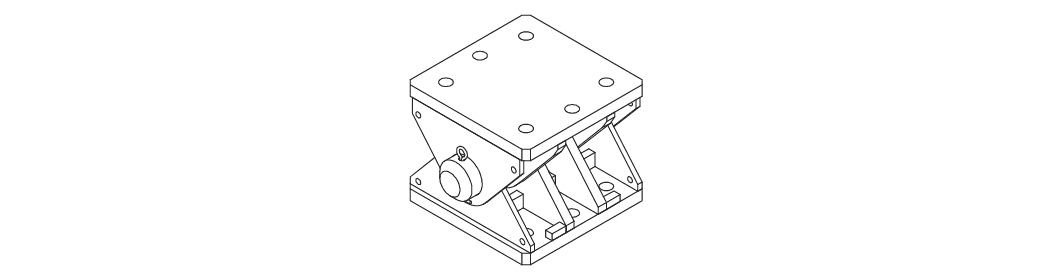

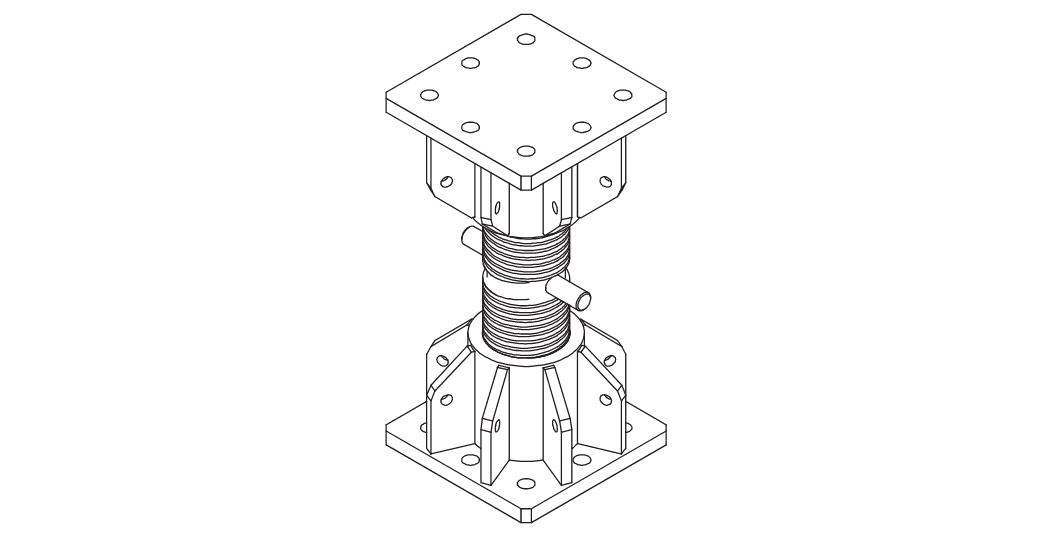

1500kN Screw Jack

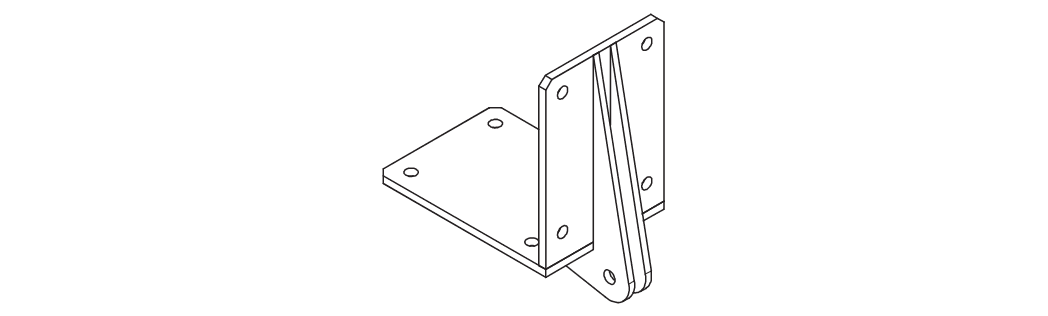

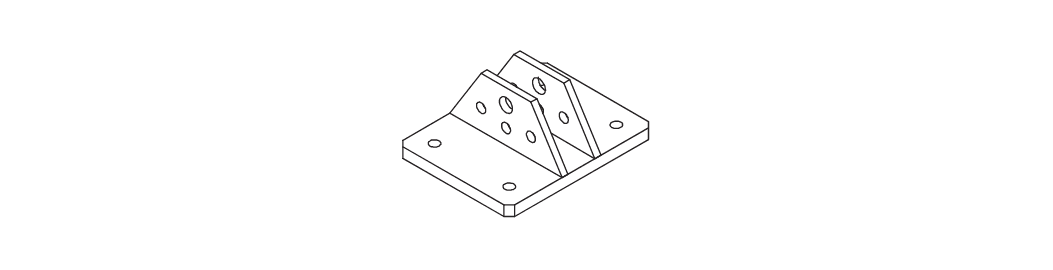

Raking Bracket

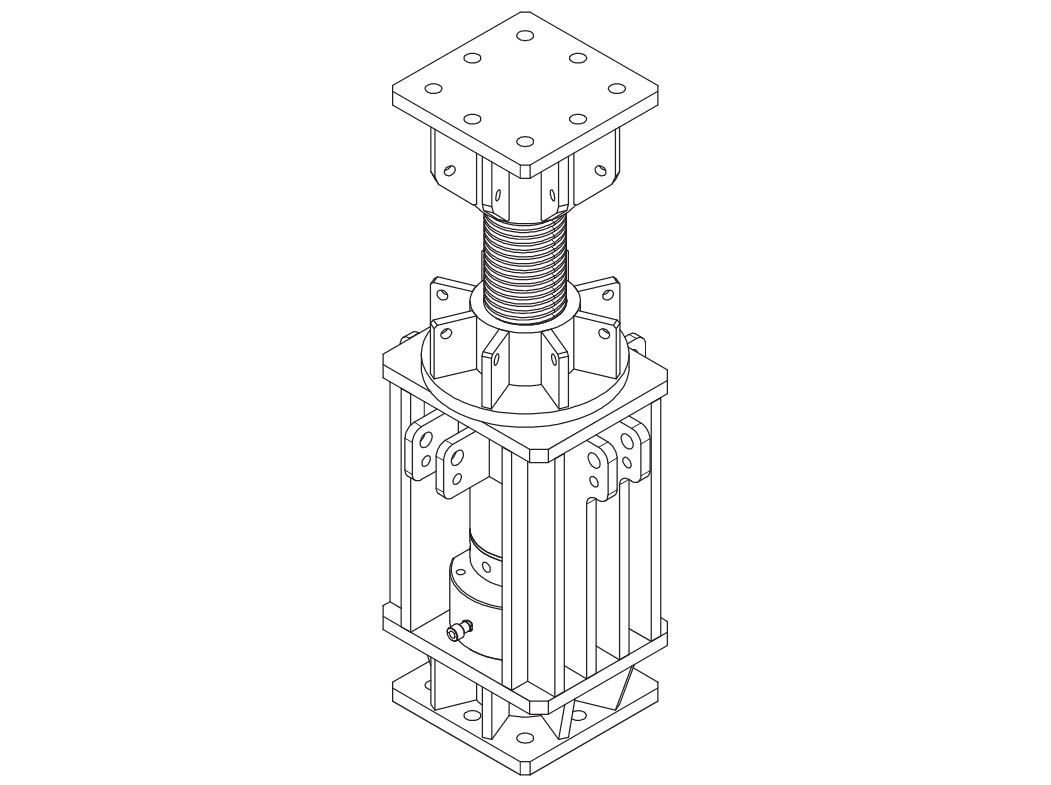

1500kN Hydraulic Jack

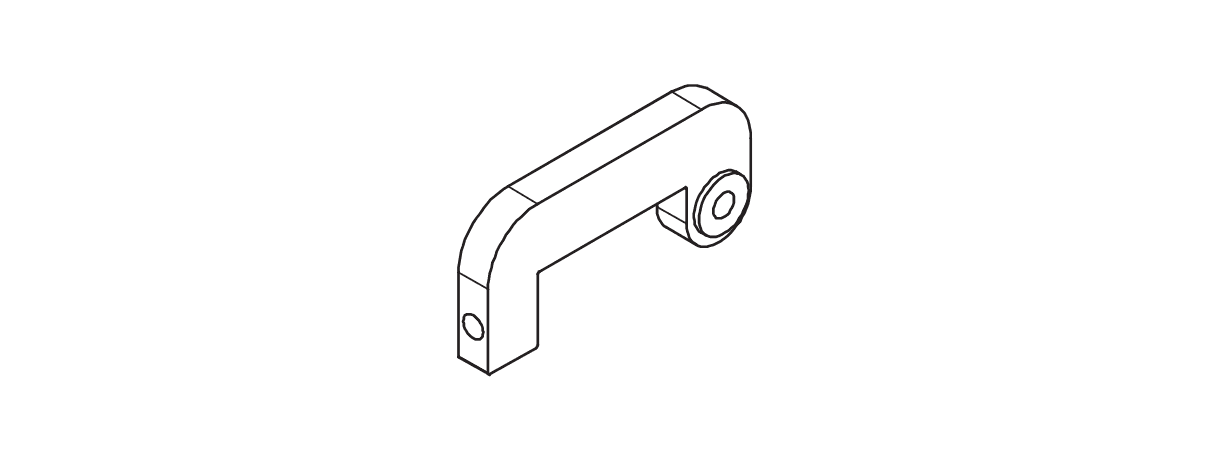

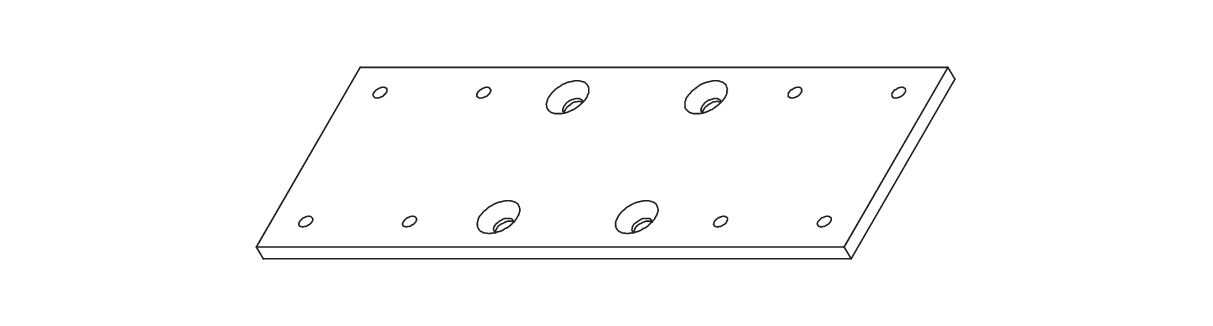

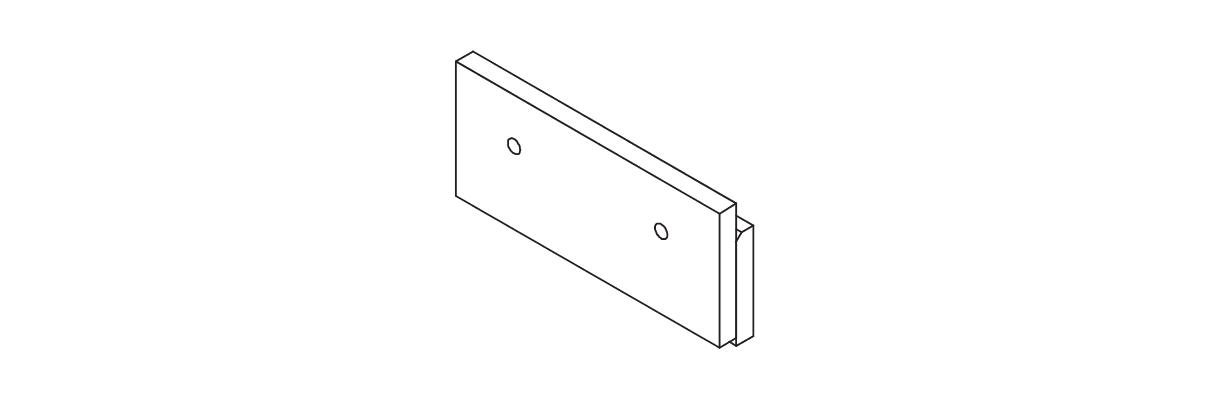

Adapters:
- Brace Adapter
- Prop / Turnbuckle Adapter
- Tie Rod Adapters – Type 1 & 2
- Jack Brace Adapter
- Soldier Adapter / Plate

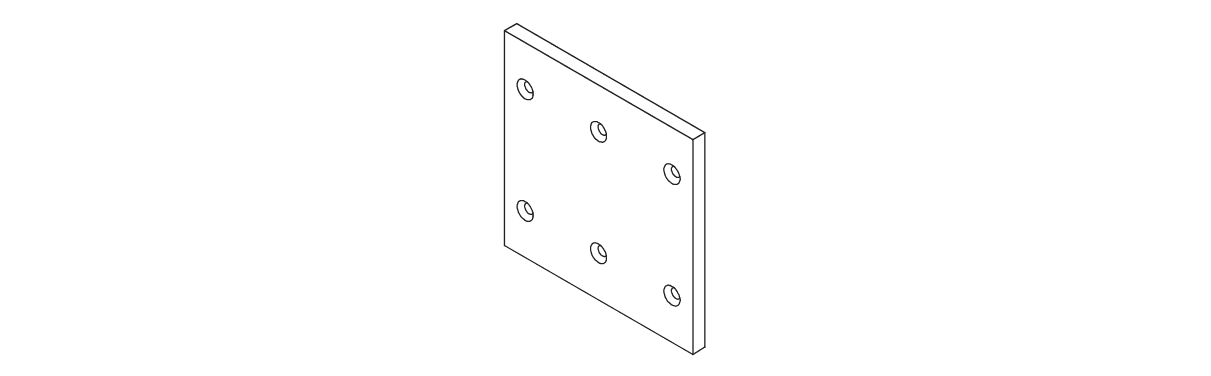

- End Plate Adapter

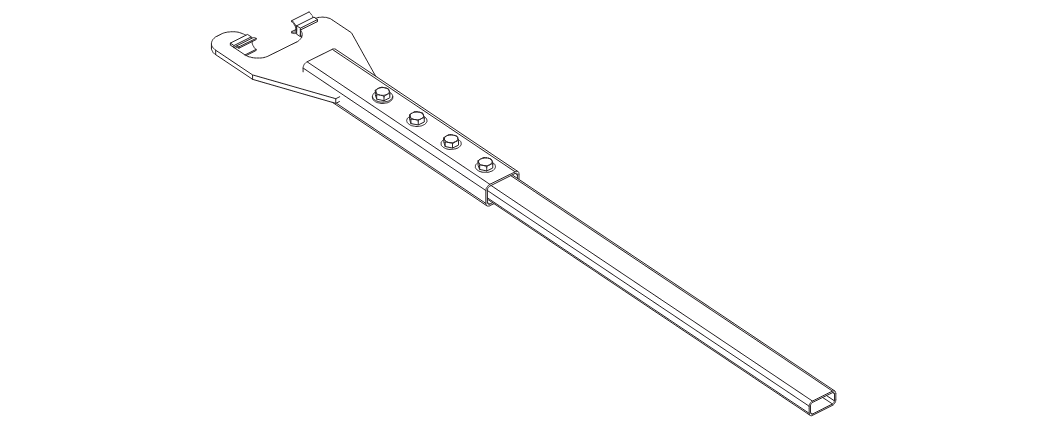

- Powershore 150 Spanner
- Waler Bracket Adapters – Type 1 & 2

The range of adapters are designed to enable the bracing of the Powershore 150 props, bolting of vertical and horizontal props and to enable the connection of the Powershore 150 components to Acrow’s range of shoring systems such as the Slim-max soldier.
