AS/NZS 4671 Reinforcement

This resource includes the following quick reference information: - Reinforcing bar dimensions, mass and density and positional tolerances. - Reinforcing mesh dimensions and properties - Reinforcement bar development and lap lengths in accordance with AS3600 - Minimum dimensions for standard shapes processed to AS3600 - Standard hooks and cogs to clause 13.1.2.7 of AS3600 – Minimum dimensions Downloadable Bluebeam Tool Sets for standard shapes

Community

1 mm

Minimum Dimensions for Standard Shapes Processed to AS 3600

Minimum Dimensions (mm) for Class N Rebar standard shapes that can be processed complying with AS 3600

Picture 1.

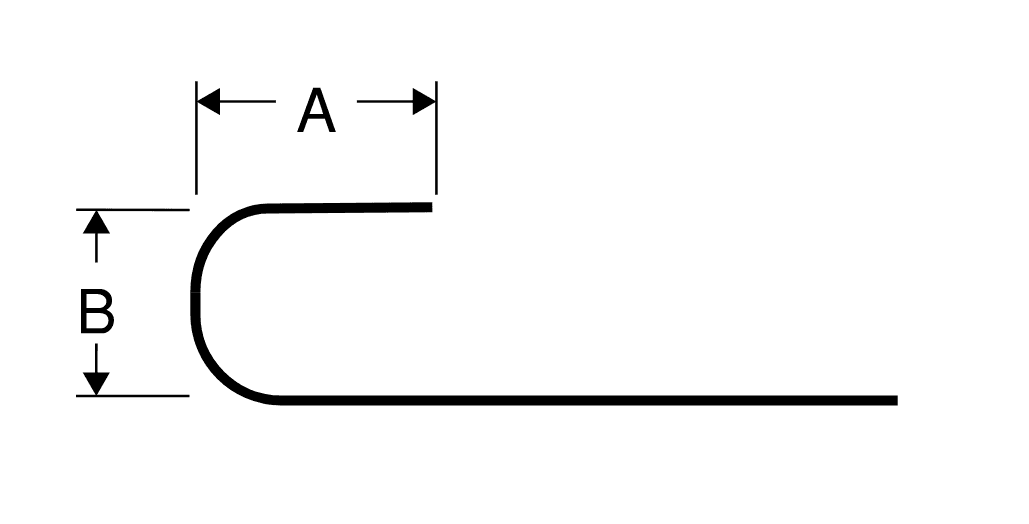

H - One 180^o hook

Downloads

Bluebeam Tool Sets for Minimum Dimensions for Standard Shapes Processed to AS 3600

The Bluebeam Tool Sets have been created at the minimum dimensions at a scale of 1:20 and 1:10. For shape codes H, U, RC, J, and HT, the shapes are composed of individual polylines that have been grouped together.
To modify these grouped shapes without ungrouping them, follow these steps:

Hold down the Ctrl and Alt keys simultaneously.

Left-click on the part of the group you want to modify.

This action will reveal the grip points, allowing you to adjust the individual polylines within the group while keeping the grouping intact.
