QuikAnkor™

ReidBar Tensile Capacity

ØN_u_,_r_b = 1 kN

Pull-out Capacity

ØN_u_,_p = 1 kN

Concrete Cone Capacity

ØN_u_,_c = 1 kN

Anchor arrangement

QuikAnkor Dimensions

The table is not uploaded or the values for the variables: Installation Type do not match table records.

Rebar Tensile Capacity, ØN_u_,_r_b, Ø = 0.85

ReidBar™ Specifications and Sizes

The table is not uploaded or the values for the variables: do not match table records.

ReidBar^T^M Tensile Capacity ØN_u_,_r_b, Ø = 0.85

Not Available

Anchor pull-out capacity, ØN_u_,_p, Ø = 0.6

The characteristic resistance of an anchor in pull-out failure calculated in accordance with AS3850.1:2024, clause B.3.2.2.

Not Available

Tensile resistance in the case of concrete cone failure, ØN_u_,_C, Ø = 0.6

Basic characteristic tensile resistance, N_u_,_C_,_�_�

Characteristic resistance for a single cast-in insert placed at a minimum distance of 1.5h_e_f from any edge. Calculated in accordance with AS3850.1:2024, clause B.3.2.3.1

Not Available

Calculation of A⁰_c_,_N

The projected concrete failure area of a single anchor idealised as a rectilinear pyramid of height h_e_f and base length 3h_e_f with an edge distance greater than 1.5h_e_f. Refer to AS3850.1:2024, clause B.3.2.3.1 and figure B.4.

Not Available

Calculation of A_c_,_N

The table is not uploaded or the values for the variables: Single or Multiple Anchors do not match table records.

Calculation of C_i

The table is not uploaded or the values for the variables: Single or Multiple Anchors do not match table records.

Calculation of ØN_u_,_C, Ø = 0.6

Characteristic tensile resistance of the selected anchor in the case of concrete cone failure. Refer to AS3850.1:2024, clause B.3.2.3.1.

Not Available

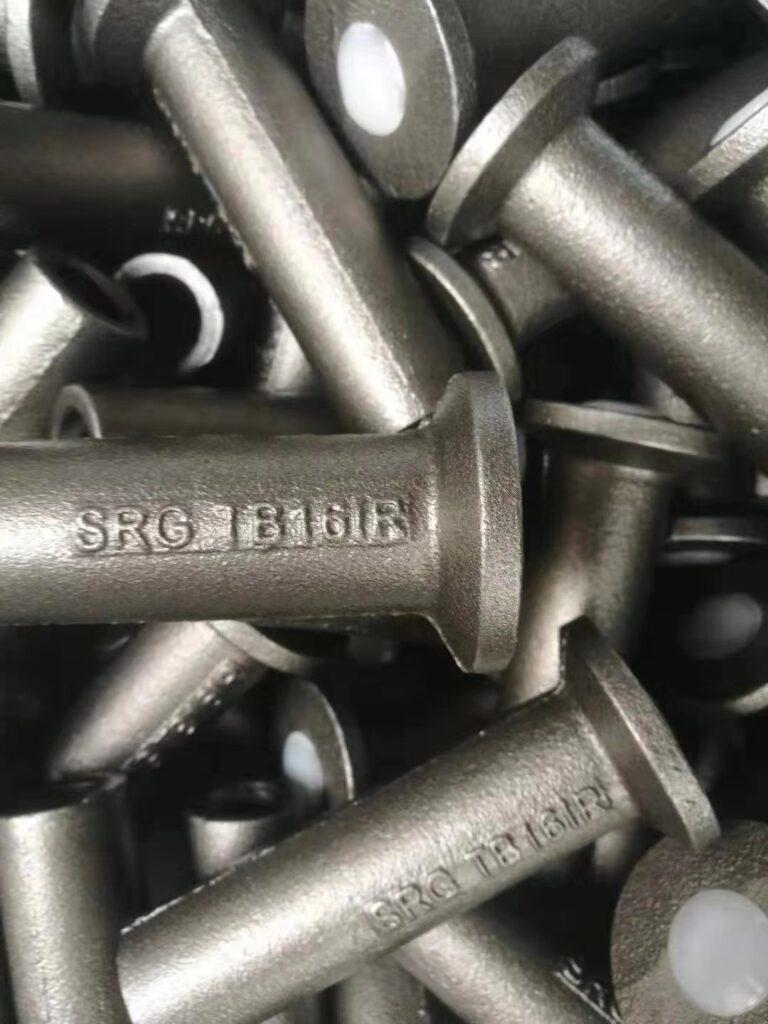

SRG Global’s QuikAnkor™ system is a cast in-situ threaded insert anchor solution that is commonly used to connect slabs and beams to walls and cores. The system uses Grade 500N ReidBar in a range of diameters. Features - Insert anchors are available fully assembled in dimpled galvanized steel boxes with corflute or steel lids. - After casting, the lid is removed, and reinforcement bars are screwed into place. Alternatively, reusable plastic rebate boards can be used to secure the insert anchors. - The rebate boards can be reused up to 40 times with proper maintenance. - SRG Global offers insert anchors with nailing plates for non-standard applications. QuikAnkor™ Box The QuikAnkor box is an essential component designed for core-to-slab connections in structural engineering applications. Its robust construction features a galvanized steel lid that is fully sealed, ensuring durability and longevity. The lid is securely attached to the box using anchors, providing a reliable and strong connection. Its innovative design allows for quick and easy installation, saving time and effort during the construction process. This feature is particularly advantageous in busy construction projects where efficiency is crucial. Additionally, the QuikAnkor box minimizes reinforcement congestion, optimizing the overall structural integrity of the project. The QuikAnkor box offers versatility, catering to various project requirements. It is available in different diameters, including 12, 16, 20, 25, and 32mm, ensuring compatibility with a wide range of applications. Furthermore, if necessary, the box can be easily modified to suit specific project needs, providing flexibility and adaptability. Engineered with a focus on practicality and reliability, the QuikAnkor box is a trusted solution for core-to-slab connections. It offers a straightforward and efficient way to establish secure connections while. Whether used in large-scale construction projects or smaller applications, the QuikAnkor box delivers consistent performance, enhancing the overall structural integrity and longevity of the project.
