Bartek BPS Stud Insert
The Bartek BPS Insert is a footed stud with a BPS female coupler swaged to the end that accepts a BPS male starter bar to form a connection between pours in concrete structures. Predominately used between core walls and floor slabs. They can also be used in the connection of precast wall panels to concrete floors.
Product Code
0
Tensile Strength of Single Anchor
Nc.k = 1 kN
Tensile Strength of Single Anchor Based on Spacing
Nc.k.s = 1 kN
Tensile Strength of Single Anchor Based on Edge Distance
Nc.k.e = 1 kN
Dimensions
Figure:

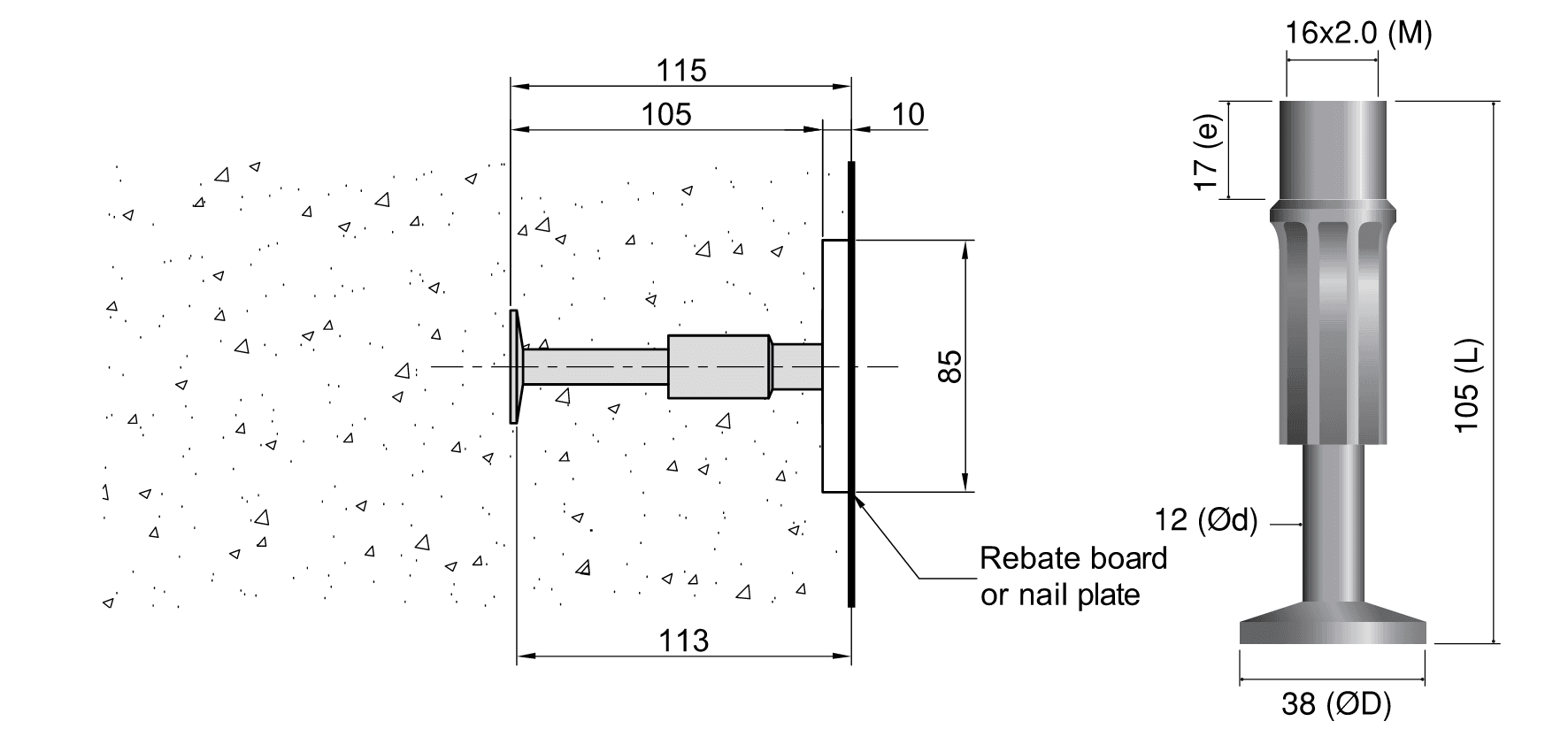

Stud inserts with rebate board or nail plate
The table is not uploaded or the values for the variables: Installation arrangement do not match table records.
Tensile Strength of a Single Anchor
AS3600 requires that the use of cast-in fixings are to be in accordance with the requirements of AS3850.1 Appendix B.
The anchor load capacities shown below are for non-cracked concrete and include the relevant ductility reduction factors required from under AS3600 & AS3850.1; 0.8 for N Grade bar in tension and 0.6 for concrete.
The table is not uploaded or the values for the variables: do not match table records.
The table is not uploaded or the values for the variables: Installation arrangement do not match table records.
The table is not uploaded or the values for the variables: do not match table records.
