Macalloy Tension Bars

Macalloy's lighter carbon and stainless bars are used in lightweight canopies, facades and suspended structures. The high strength bars provide support for bridge decks, in bolstering bridges the good fatigue properties of the bar are an important design feature in road, tram and pedestrian bridges alike. Benefits

Fatigue resistant rolled thread
Available in 460N/mm2, 520N/mm2 and now a 550N/mm2 strength for both carbon and stainless
All products compliant with ETA21/0053 and CE compliant
Bars and fittings can be supplied primed or painted and/or hot dipped galvanised to BS1461:2009
Bespoke fittings can be designed to suit customer applications
Technical literature is available with design calculations and loadings to EC3
Macalloy engineers are always available to help

Min. Yield Load

1 kN

Design Resistance to EC3 N_R_,_d

1 kN

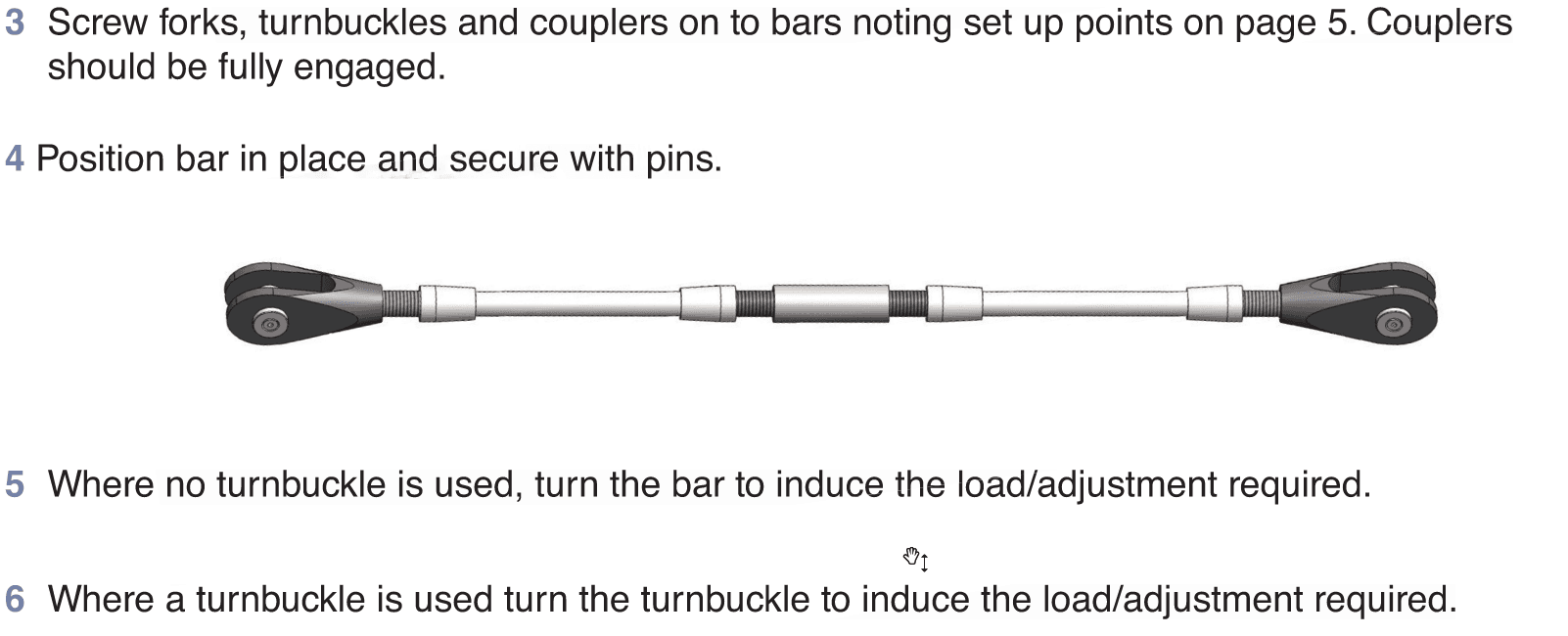

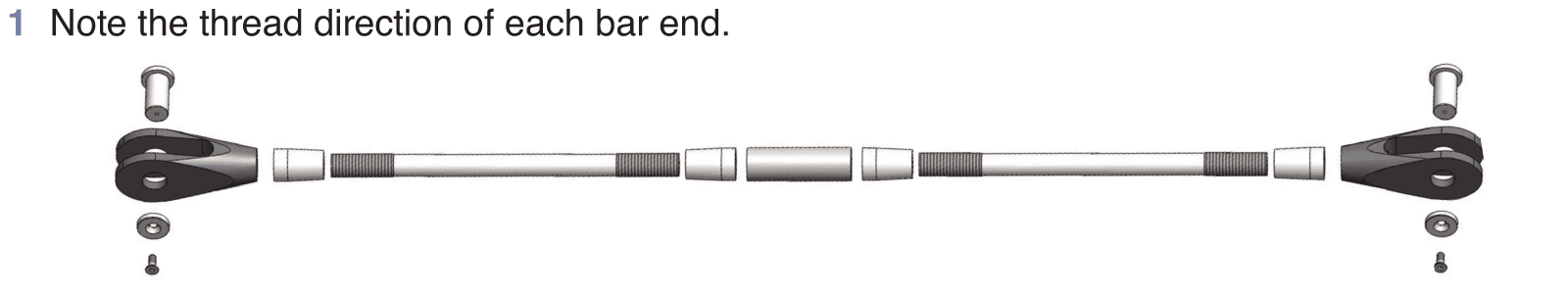

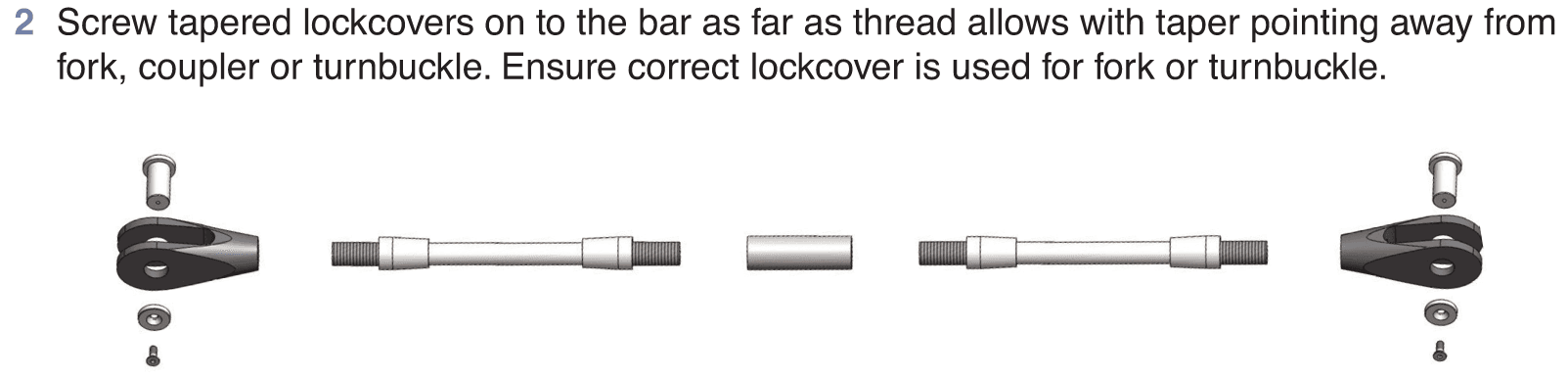

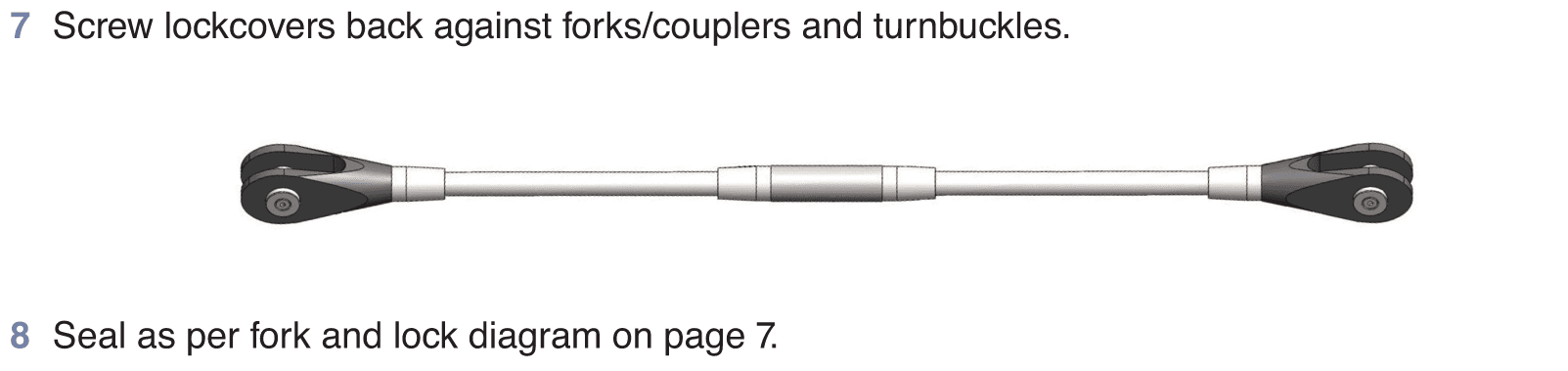

Assembly and installation

For both pre-assembled and non-assembled tendons please follow the assembly and installation instructions to ensure correct set up points and thread engagement.

Figure:

Assembly and installation

To ensure full strength of threaded joints a minimum of 1 x thread diameter should be engaged in fork/turnbuckle joints. Where large loads need to be induced in a tension bar the Macalloy TechnoTensioner can be used. See page 7 for more information. Spanner flats available on request on bars and turnbuckles, please specify at time of order.

Material properties

The table is not uploaded or the values for the variables: do not match table records.

Tendon capacities

The table is not uploaded or the values for the variables: Product name do not match table records.

Maximum length of individual bars

The table is not uploaded or the values for the variables: do not match table records.

Corrosion protection

The table is not uploaded or the values for the variables: do not match table records.

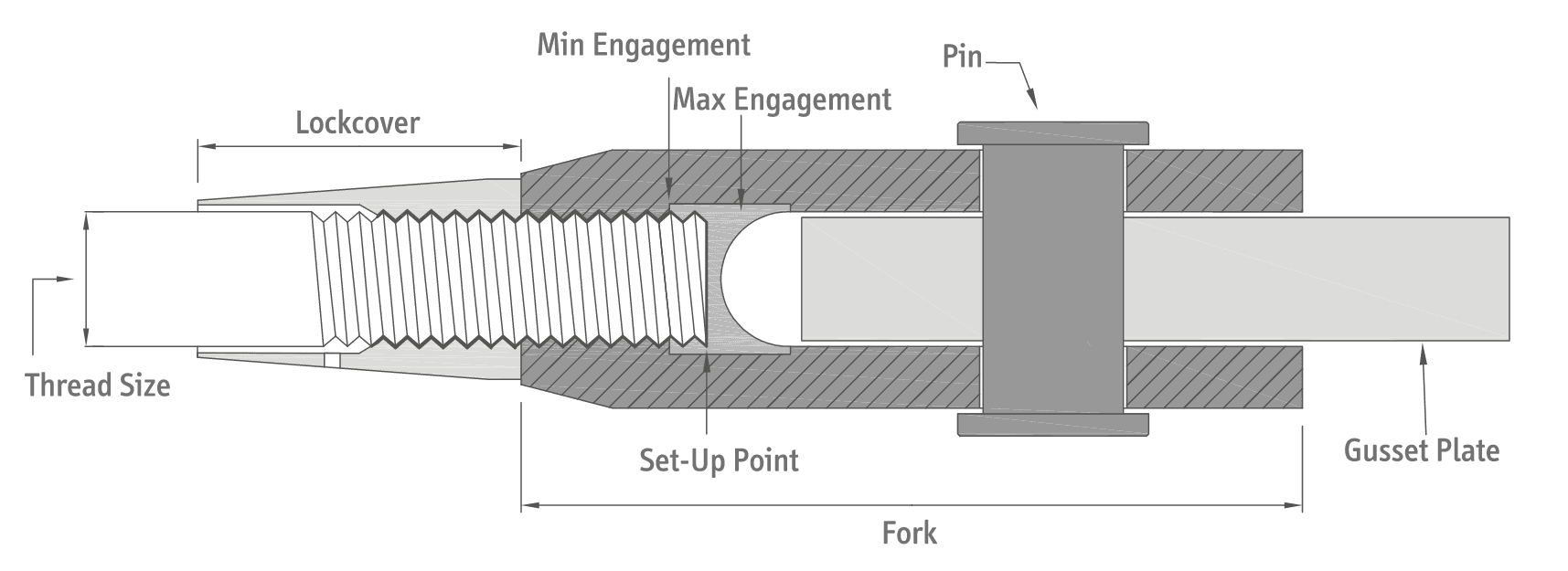

Fork adjustment and set up points

Figure:

Fork adjustment and set up points

The table is not uploaded or the values for the variables: do not match table records.

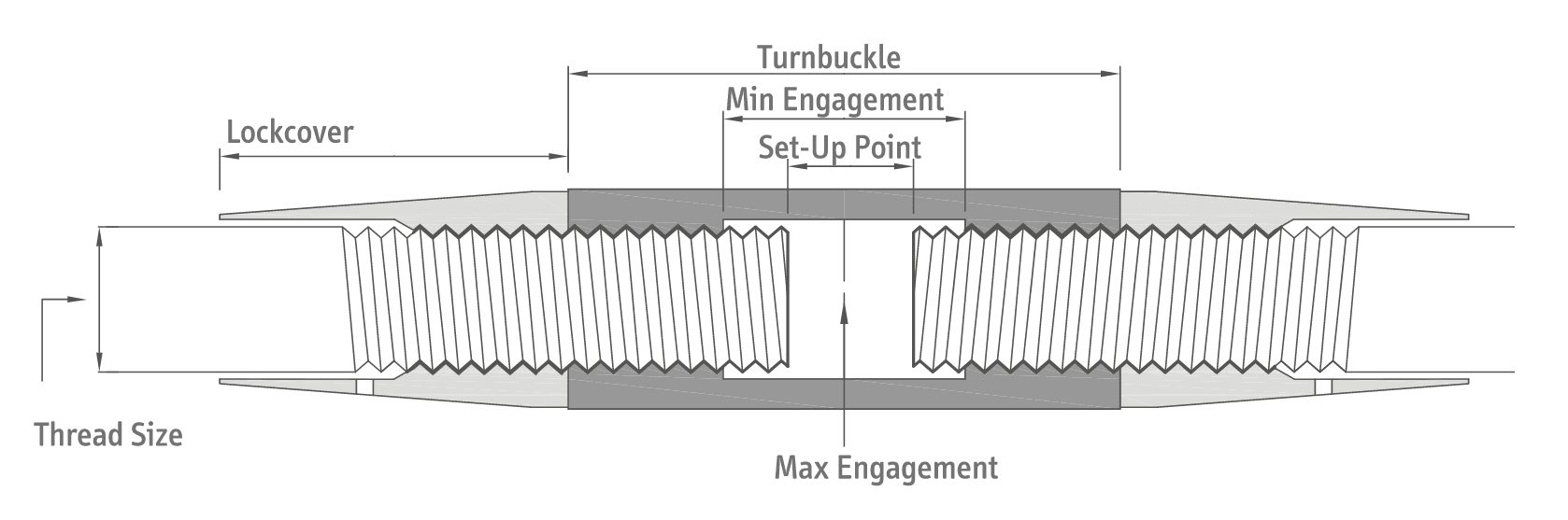

Turnbuckle adjustment and set up points

Figure:

Turnbuckle adjustment and set up points

The table is not uploaded or the values for the variables: do not match table records.

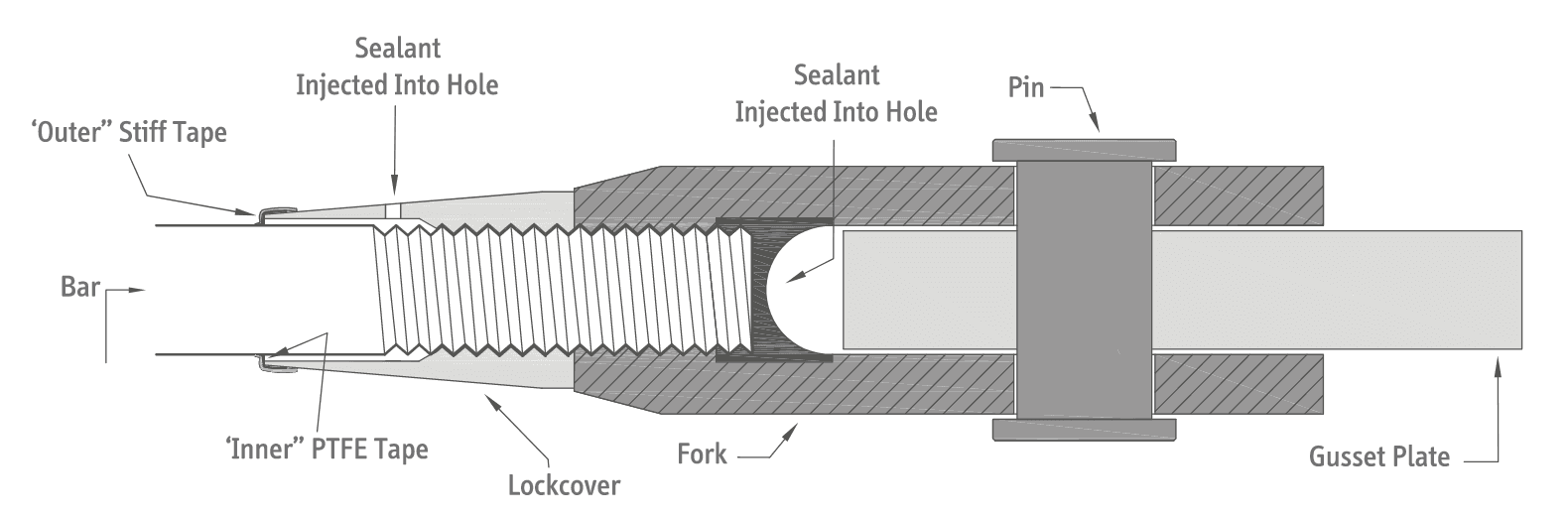

Fork and Lock Cover Sealing

Recommended for use with all finishes to protect against vibration and corrosion. The same method should be applied whether used with a fork, coupler or turnbuckle.

Figure:

Fork and Lock Cover Sealing

Fork and Lockcover sealing method statements are availble on request. If no lock cover is used, contact Macalloy for sealing methods.

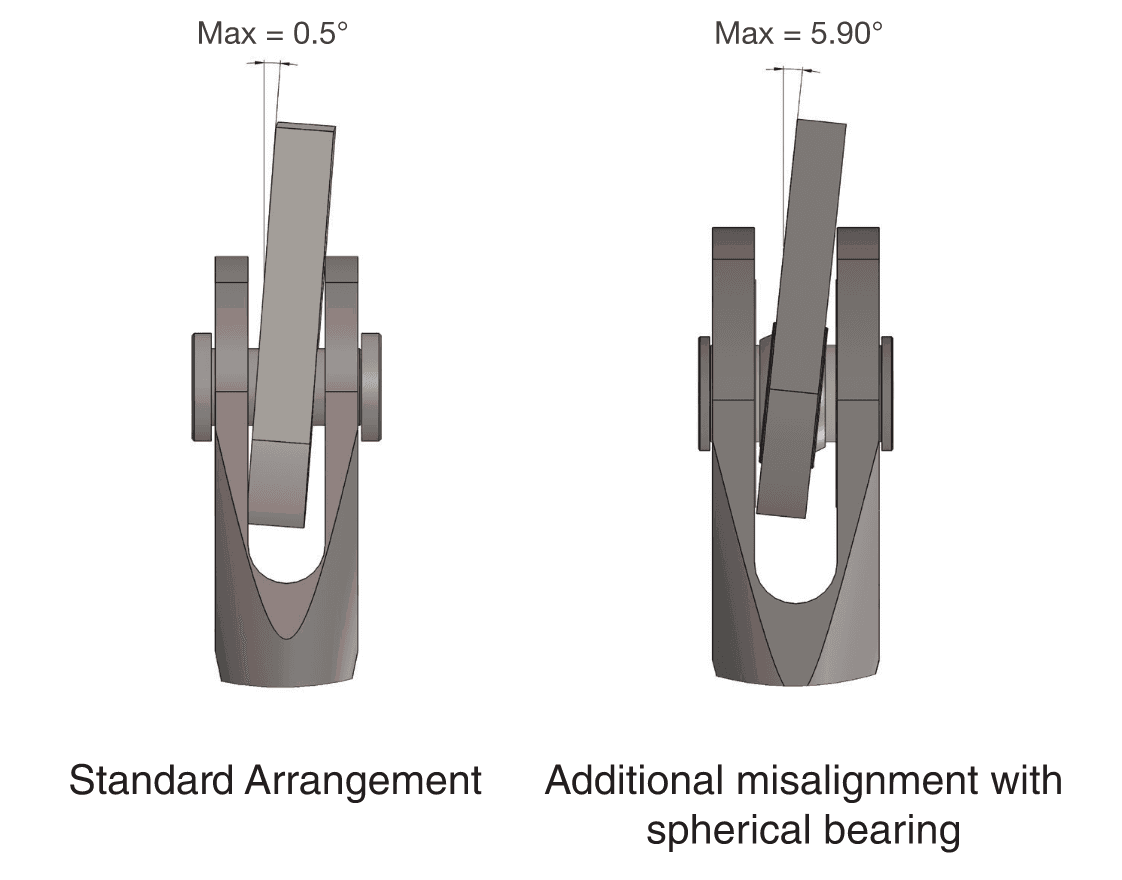

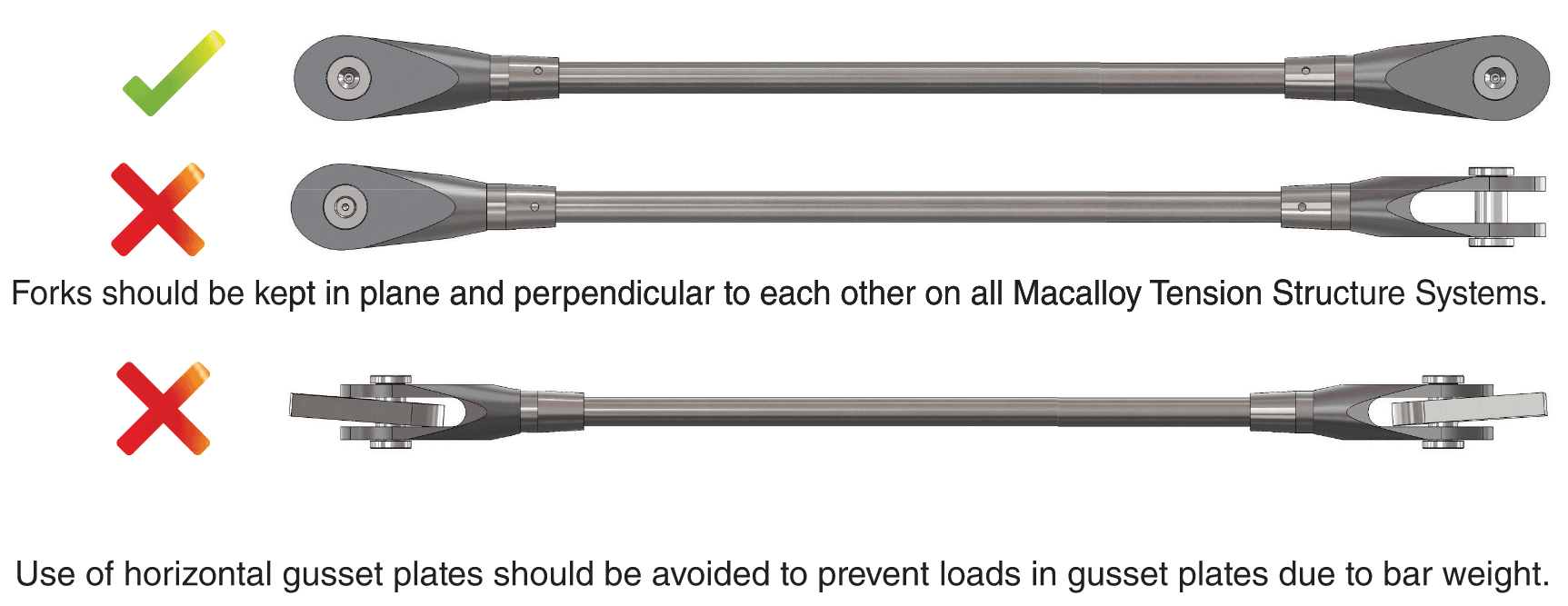

Fork / Gusset Plate Misalignment

Figure:

Fork / Gusset Plate Misalignment

The standard Macalloy fork allows for misalignment between gusset plates of up to 0.5 degrees. Where greater adjustment is required or there is potential movement exceeding 0.5 degrees, larger forks can be put on the bar or strut and a spherical bearing can be inserted providing up to 5.9 degrees of misalignment / movement.

Figure:

Fork / Gusset Plate Misalignment

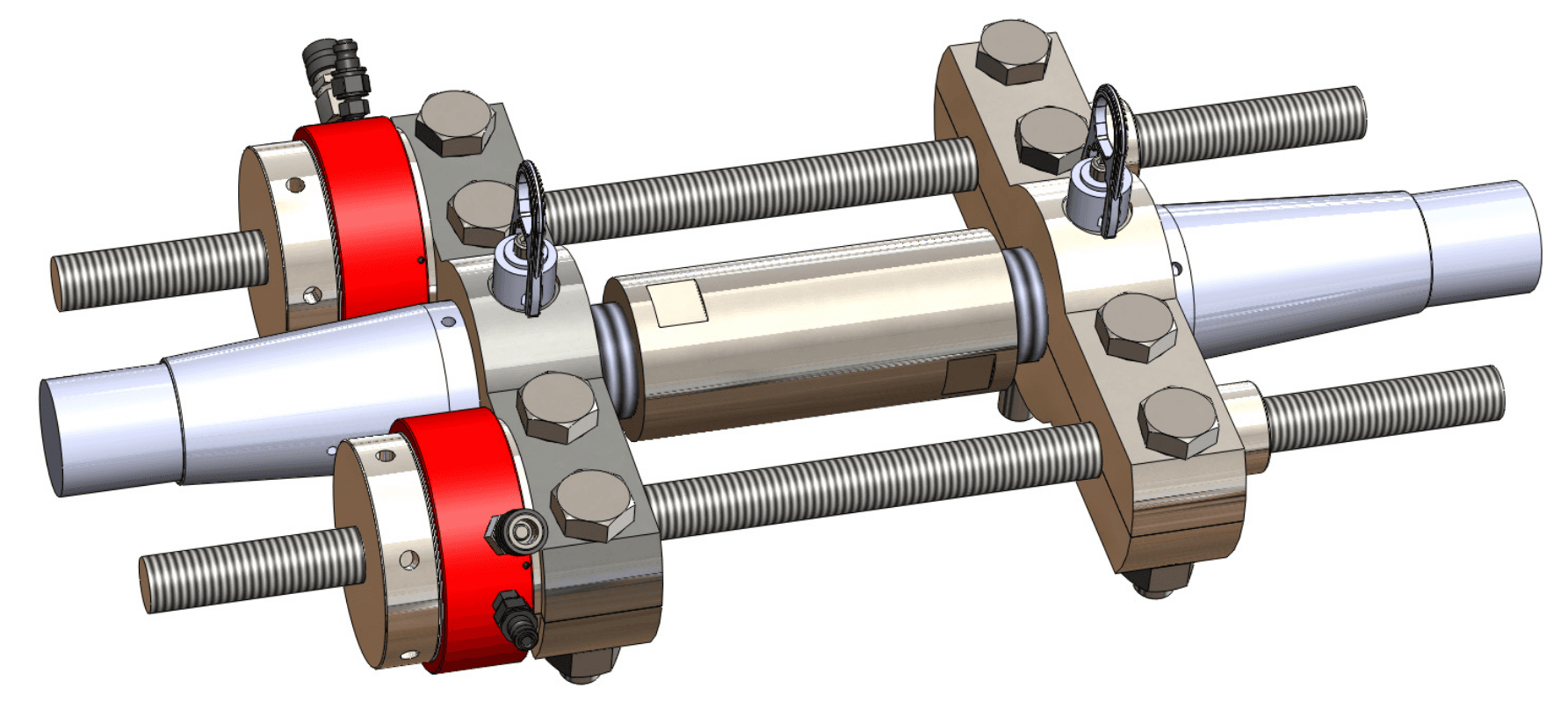

TechnoTensioner

The Macalloy TechnoTensioner allows you to induce an accurate load into Macalloy tendons where a turnbuckle is used. The Macalloy TechnoTensioner works by gripping the tension bar on either side of the turnbuckle and pulling the bars together into tension thus loosening the turnbuckle. The turnbuckle can then be tightened with a strap, chain or stilson wrench.

Figure:

TechnoTensioner

Components

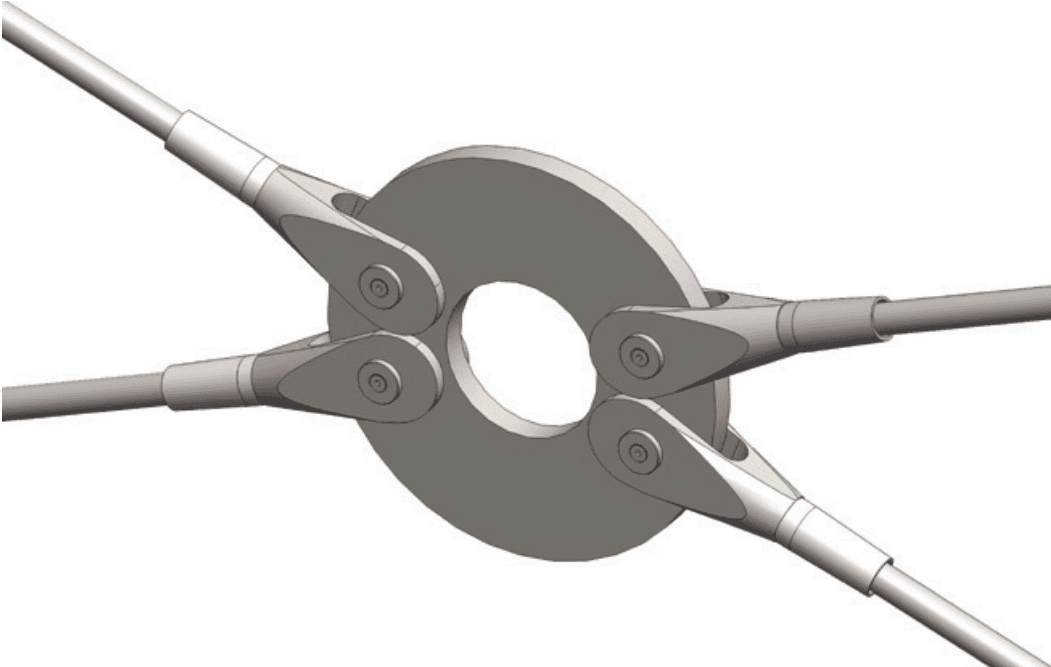

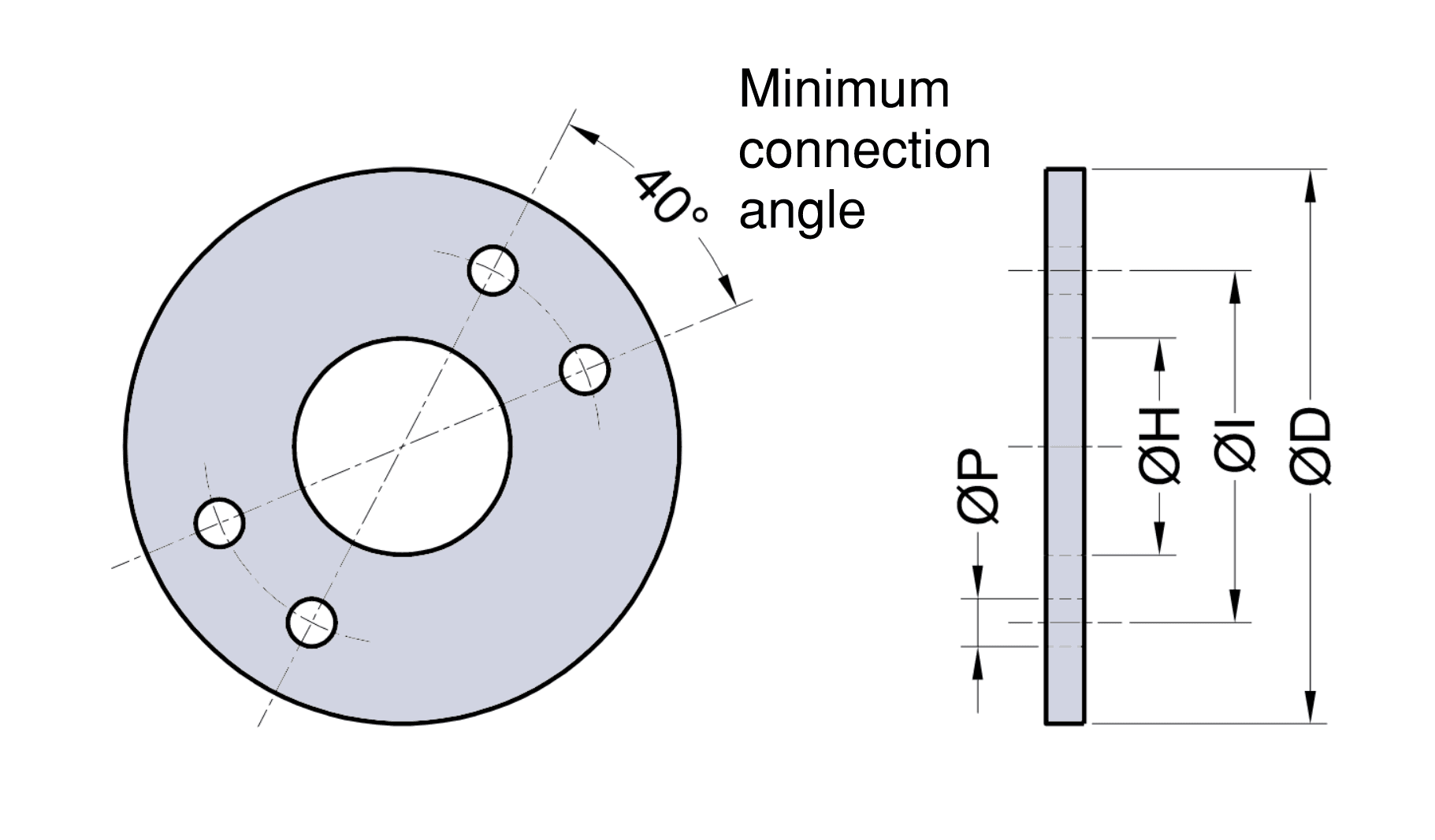

Connection solution

Figure:

Disc connection

The table is not uploaded or the values for the variables: Connection Solution do not match table records.

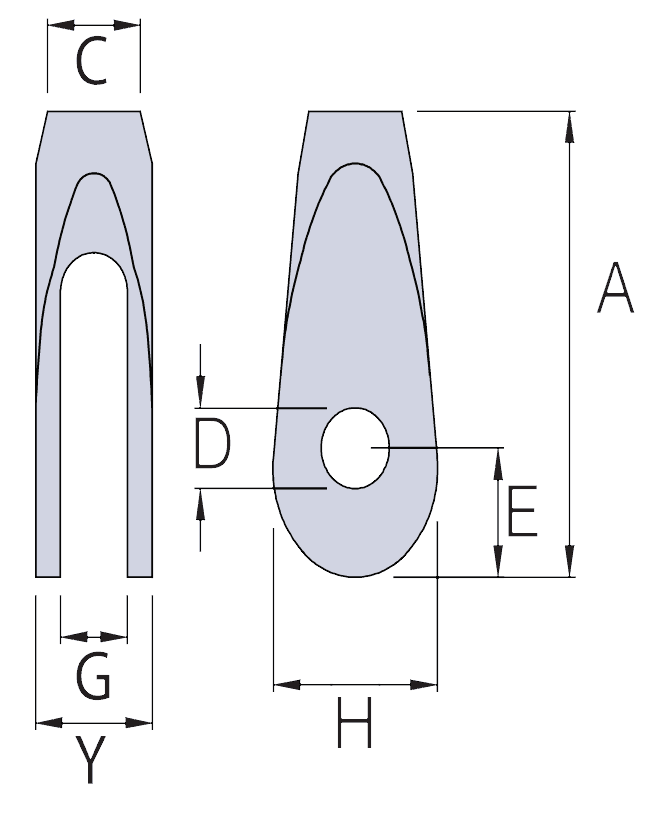

Fork

Figure:

Fork

The table is not uploaded or the values for the variables: do not match table records.

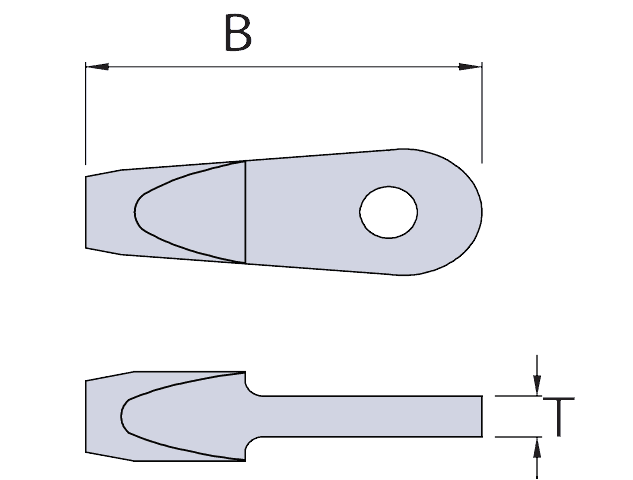

Spade

Figure:

Spade

The table is not uploaded or the values for the variables: do not match table records.

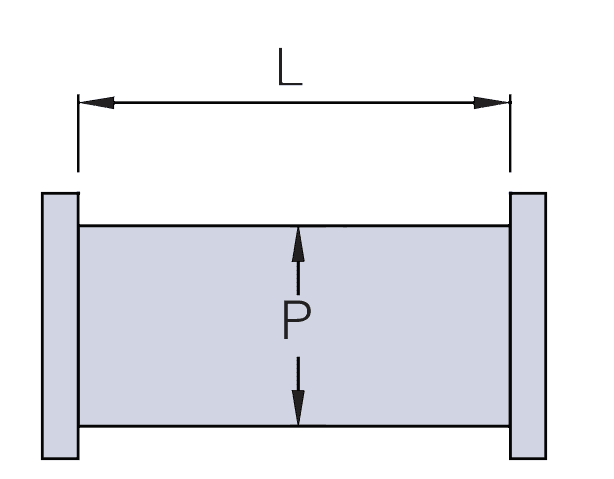

Architectural Pin

Figure:

Architectural Pin

The table is not uploaded or the values for the variables: do not match table records.

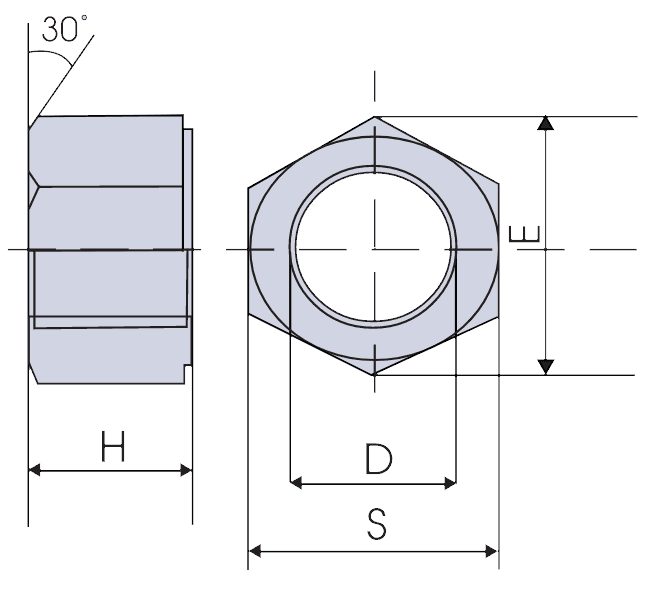

Hex Nuts Units

Figure:

Hex Nuts Units

The table is not uploaded or the values for the variables: do not match table records.

Turnbuckle

Figure:

Turnbuckle

The table is not uploaded or the values for the variables: do not match table records.

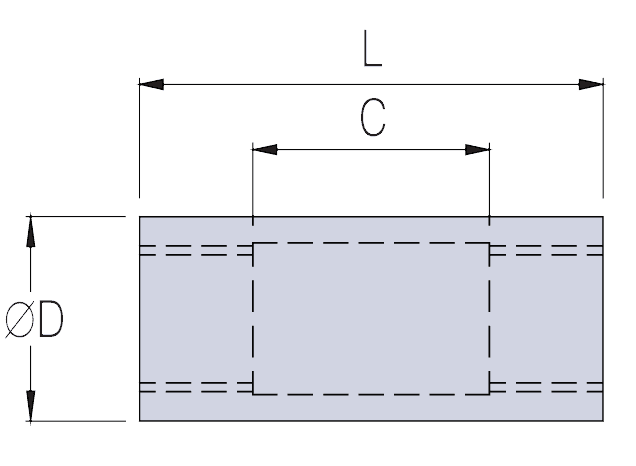

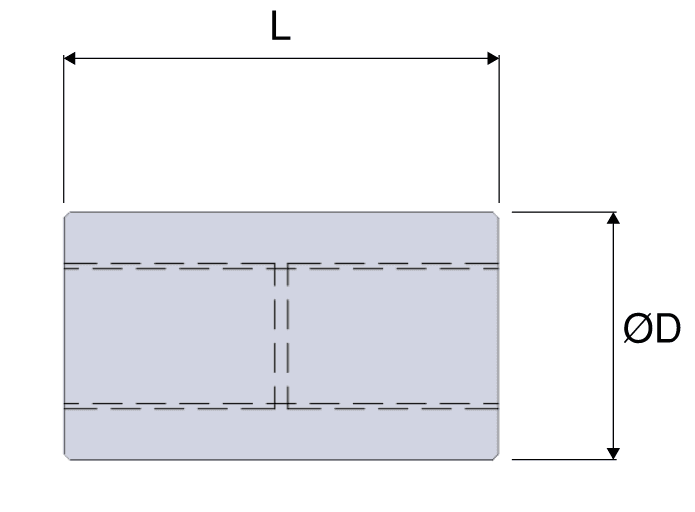

Coupler

Figure:

Coupler

The table is not uploaded or the values for the variables: do not match table records.

Fork & Coupler Lock Covers

Figure:

Fork & Coupler Lock Covers

The table is not uploaded or the values for the variables: do not match table records.

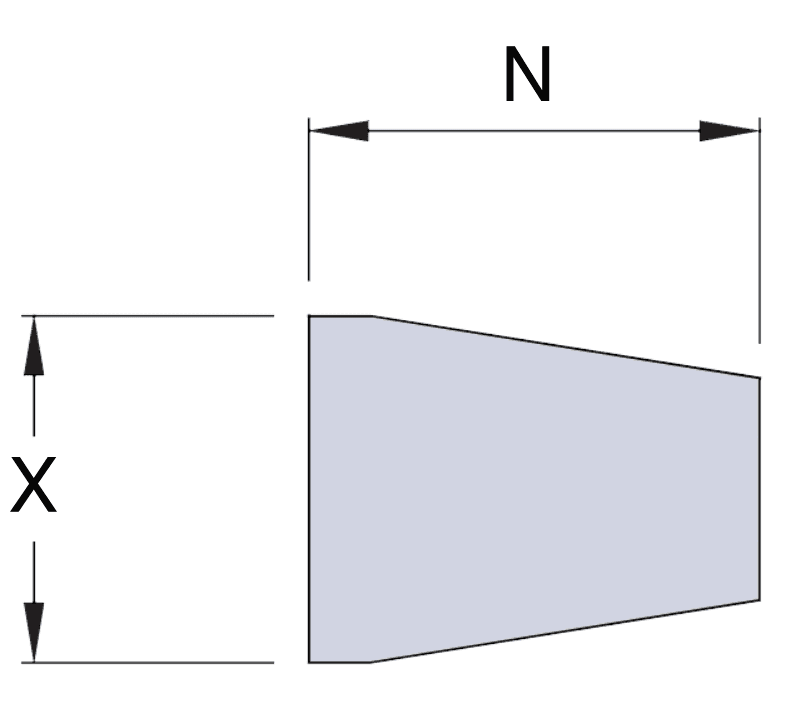

Universal Lock Covers

Figure:

Universal Lock Covers

The table is not uploaded or the values for the variables: do not match table records.
