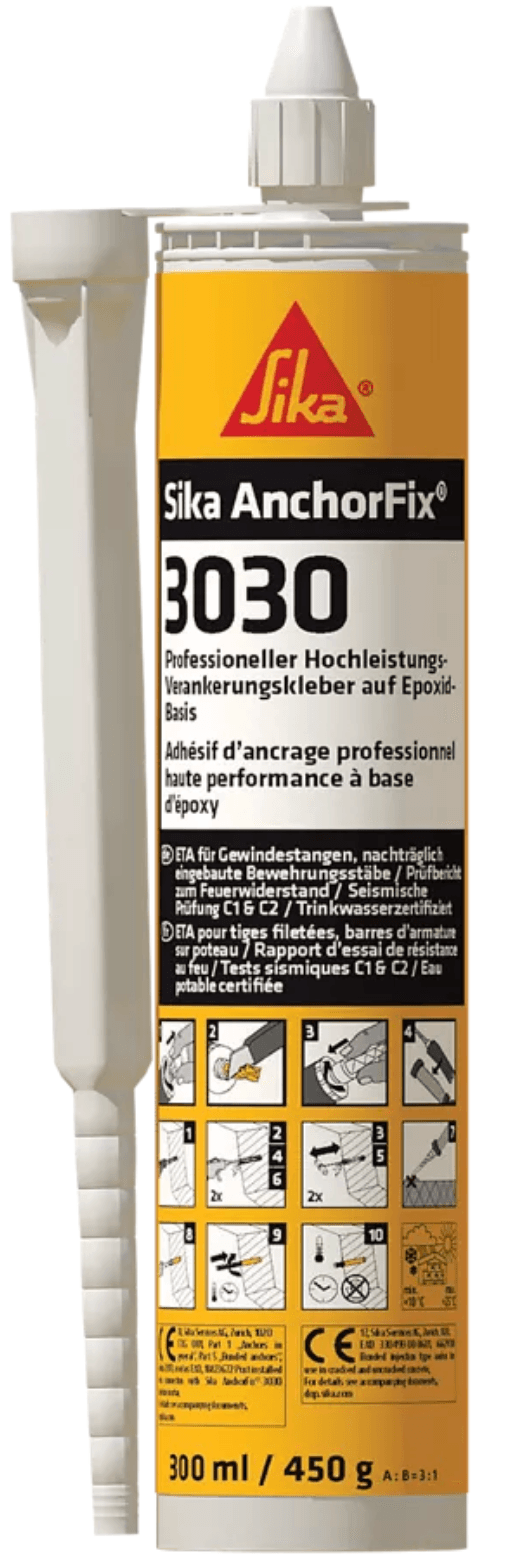

Sika AnchorFix®-3030 Chemical Anchoring Adhesive

Sika AnchorFix®-3030 is an epoxy resin based, 2-part, thixotropic, high performance anchoring adhesive for anchoring threaded rods and reinforcing bars in both cracked and uncracked concrete dry or damp concrete.

Download Sika AnchorFix® Calculation Software for detailed design calculations.

Effective Embedment Depth

h_e_f = 1 mm

Design Resistance for Steel Failure

N_R_d_,_s = 1 kN

Design Resistance for Combined Pull-out and Cone Failure

N_R_d_,_p = 1 kN

Design Resistance for Concrete Cone Failure

N_R_d_,_c = 1 kN

Tension Load Factor

1 ≤ 1

Splitting failure verification

true

Concrete blow-out failure verification

true

Concrete splitting failure check during installation

PASS

Design Assumptions

1. ETA Values: The ETA values for EOTA TR029 were used in all calculations. 2. Design Standard: The design is based on AS 5216:2021, which is identical to EOTA TR029. The only difference is that AS 5216:2021 uses cylinder concrete strength (f'c) instead of the cube concrete strength specified in EOTA TR029. 3. Anchor Configuration: While the number of anchors is taken as 2 for spacing geometric effect calculations, the resistance is always calculated for a single anchor. 4. Reinforcement: No dense reinforcement is considered in these calculations. 5. Installation Conditions: Category 2 – installation in dry or wet concrete or in flooded hole. 6. Temperature Range: -40°C to +70°C. 7. Seismic Design: No seismic categories are included in this calculation. 8. Splitting and Blow-out Resistance: These resistances are not calculated. The calculation will highlight when these resistances are required. 9. Complex Geometry Cases: Use Sika AnchorFix® Calculation Software for multiple edge distances or for combinations of edge distance and spacing scenarios.

Installation

Figure:

Installation dimensions

The table is not uploaded or the values for the variables: Anchor Type do not match table records.

Minimum curning time

The table is not uploaded or the values for the variables: do not match table records.

Steel Failure

Figure:

Steel failure mode

Tension Load - Steel Characteristic Resistance, N_R_k_,_s

The table is not uploaded or the values for the variables: Anchor Type do not match table records.

Tension Load - Steel Partial Safety Factor, 𝛾_M_s

The table is not uploaded or the values for the variables: Anchor Type do not match table records.

Steel Capacity Reduction Factor, φ_M_s

The steel capacity reduction factor determined in accordance with Table B.7 of AS 5216:2021.

Not Available

Steel Design Resistance, N_R_d_,_s

The limit state steel design resistance for anchor loaded in tension is calculated in accordance with Clause 6.2.2 of AS 5216:2021.

Not Available

Geometric Effect

Splitting Failure during Installation

Concrete splitting failure due to installation is checked according to Clause 6.2.6.1 AS 5216:2021.

To avoid checking concrete blow-out failure due, check c > 0.5h_e_f according to Clause 6.2.7.1 AS 5216:2021.

Not Available

Edge Distance Preview

Figure:

Close edge distance

Concrete Cone Failure (cl. 6.2.3 AS 5216:2021)

Figure:

Concrete cone failure mode

Effective Embedment Depth, h_e_f

The table is not uploaded or the values for the variables: Anchor Type do not match table records.

Characteristic bond resistance τ_R_k

The table is not uploaded or the values for the variables: Anchor Type do not match table records.

Characteristic strength of an individual fastener, N⁰_R_k_,_c

Calculated in accordance with Clause 6.2.3.2 of AS 5216:2021.

Not Available

Characteristic strength of a fastener or a group of fasteners, N_R_k_,_c

Calculated in accordance with Clauses 6.2.3.1 and 6.2.3.3 of AS 5216:2021.

Not Available

Tension Load - Concrete Partial Safety Factor, 𝛾_M_c and 𝛾_M_p

The table is not uploaded or the values for the variables: Anchor Type, Installation Condition do not match table records.

Concrete Design Resistance for Concrete Cone Failure, N_R_d_,_c

The capacity reduction factor for combined concrete cone and pull-out failure is determined in accordance with Table B.7 of AS 5216:2021. The limit state concrete design resistance for concrete cone failure for anchor loaded in tension is calculated in accordance with Clause 6.2.3 of AS 5216:2021. The verification is in accordance with Table 3.4.2.1 of AS 5216:2021.

Not Available

Combined Concrete Cone and Pull-out Failure (cl. 6.2.5 AS 5216:2021)

Figure:

Combined cone and pull-out failure

Concrete Strength Influence Factor, Ψ_c

The table is not uploaded or the values for the variables: do not match table records.

Characteristic strength of an individual fastener, N⁰_R_k_,_p

The characteristic load is calculated in accordance with the Clause 6.2.5.2 of AS 5216:2021. Note: the sustained loading factor Ψ_s_u_s is adopted as 1.0, meaning that the ratio of sustained loads (permanent actions and permanent component of variable actions) to the total value of actions acting on the fastener at ultimate limit state is less than 0.6.

Not Available

Combined Concrete Cone and Pull-out Failure Design Resistance, N_R_k_,_p

Calculated in accordance with Clause 6.2.5.1, 6.2.5.3, 6.2.5.4 and 6.2.5.3 of AS 5216:2021.

Not Available

Concrete Design Resistance for Combined Concrete Cone and Pull-out Failure, N_R_d_,_p

The capacity reduction factor for combined concrete cone and pull-out failure is determined in accordance with Table B.7 of AS 5216:2021. The limit state concrete design resistance for combined pull-out and concrete cone failure for anchor loaded in tension is calculated in accordance with Clause 6.2.5 of AS 5216:2021. The verification is in accordance with Table 3.4.2.1 of AS 5216:2021.

Not Available

Concrete Splitting Failure

Figure:

Concrete splitting failure mode

Is Splitting Failure Verification due to loading required?

Conditions (a) and (b) according to Clause 6.2.6.2 of AS 5216:2021. Condition (b) requires additional splitting reinforcement to be provided with area > A_s_,_r_e shown below

Not Available

Minimum reinforcement for cracked concrete to avoid splitting failure A_s_,_r_e

The aim of the reinforcement to limit the crack width to wk~0.3 mm. The reinforcement is calculated in accordance with Clause 6.2.6.2 of AS 5216:2021.

Not Available

Concrete Blow-out Failure

Figure:

Concrete blow-out failure mode

Is Concrete Blow-out Failure verification required?

To avoid checking concrete blow-out failure due, check that edge distance c > 0.5h_e_f according to Clause 6.2.7.1 AS 5216:2021.

Not Available

Capacity Verification Checks

Load Factor in Tension

Load factor represents the verification checks in Table 3.4.2.1 of AS5216:2021: N* ≤ φ_M_s ⋅ N_R_k_,_s and N* ≤ φ_M_p ⋅ N_R_k_,_c and N* ≤ φ_M_p ⋅ N_R_k_,_p Note! Please check splitting or blow-out failure if required!

Not Available

Validation

Results are well aligned with Sika AnchorFix® Calculation Software. The difference in Concrete Cone Resistance is due to the conversion from cube concrete strength in EOTA TR029 to cylinder strength in AS 5216:2021.

Verification Method:comparison to Sika AnchorFix® Calculation Software results

Verified by:SpectaCalc

Verification date:05/08/2025

Number of Checks:9
